Self Priming Pump-PZB Series Self-priming Electric Pump With Mini Tank -

PZB series

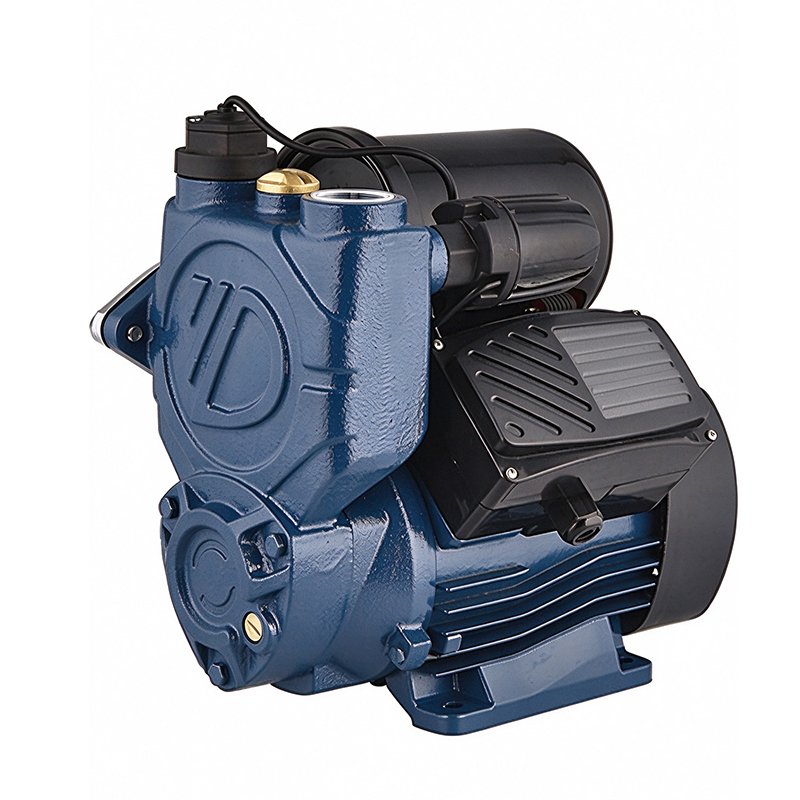

≋ PZB Self-priming Electric Pump With Mini Tank

∿ We are a Chinese manufacturer and supplier offering high-quality, high-performance water pumps.

◍ PZB pump is Self-Priming household booster clean water pump.

✓ Reliable Structure for Continuous Water Delivery

★ Heavy-duty Casing • Efficient Motor • Built to Last

Product Description

PZB series pump is self-priming pherephral pump.The system consists of a water pump, a pressure tank, and a pressure switch. The specially designed structure make it better appearance and performance.These systems give suitable mains water pressure as required by modern domestic appliances and industrial applications.

Operation Coditions

Maximum fluid temperature up to +40℃

Maximum sand content: 0.25%

Maximum suction lift: 8m

Features

Rewindable motor

Single-phase:220-240V/50Hz

MODEL	DN1	DN2	DIMENSIONS(mm)			WEIGHTS(kg)
			W	H	L	1~
PZB200A	1″	1″	100	250	220	8.5
PZB350A	1″	1″	100	250	250	9
PZB500A	1″	1″	115	250	250	12.5
PZB750A	1″	1″	115	270	270	14.5
PZB1000A	1″	1″	115	280	280	16
PZB1500A	1″	1″	130	320	320	25
