Horizontal Multistage Centrifugal Electric Pump-PSR Centrifugal Pump -

PSR series

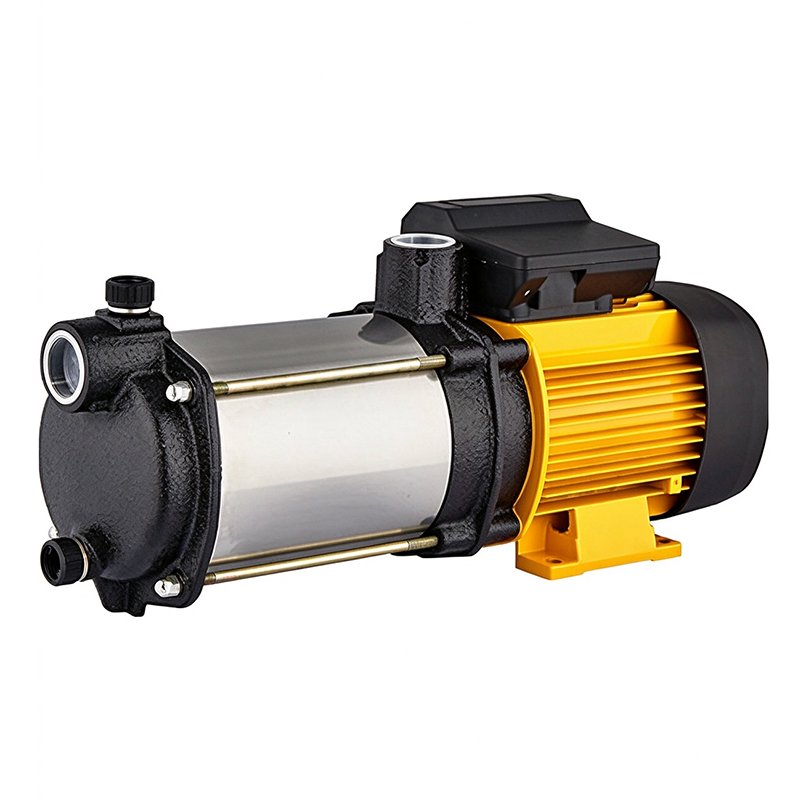

≋ PSR Horizontal Multistage Centrifugal Electric Pump

∿ We are a Chinese manufacturer and supplier offering high-quality, high-performance water pumps.

◍ PSR pump is used in pressure boosting and water supply systems for clean water.

✓ Reliable Structure for Continuous Water Delivery

★ Heavy-duty Casing • Efficient Motor • Built to Last

Product Description

PSR series pumps are used in domestic and civil applications such as the pressurisation and distribution of water in combination with pressure sets, and in rain water recovery and irrigation systems, etc.

Operation Coditions

Maximum fluid temperature up to +40℃

Maximum sand content: 0.25%

Maximum suction lift: 8m

Features

Rewindable motor

Single-phase:220-240V/50Hz

Three-phase:380-415V/50Hz

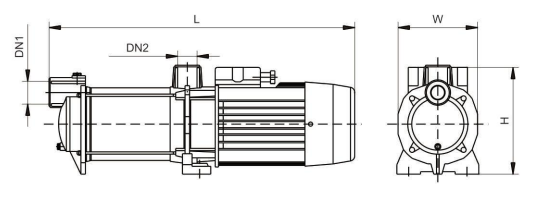

MODEL	DN1	DN2	DIMENSIONS(mm)			WEIGHTS(kg)
			W	H	L	1~	3~
PSR(m)253	1″	1″	138	192	423	14	13.5
PSR(m)254	1″	1″	138	192	449	14.5	14
PSR(m)255	1″	1″	138	192	475	15	14.5
PSR(m)352	1″	1%	159	214	487	19	18.5
PSR(m)353	12	17	159	214	514	21	20
PSR(m)354	1″	1%	159	214	541	23	22
PSR355	1″	1%	159	214	568	–	22.5
PSR(m)452	1″	1″	173	250	530	24.5	23
PSR(m)453	1″	1″	173	250	560	26.5	25
PSR(m)454	1″	1″	173	250	590	29	27
PSR455	1″	1″	173	250	620	–	30
