Horizontal Multistage Centrifugal Electric Pump-SR Centrifugal Pump -

SR series

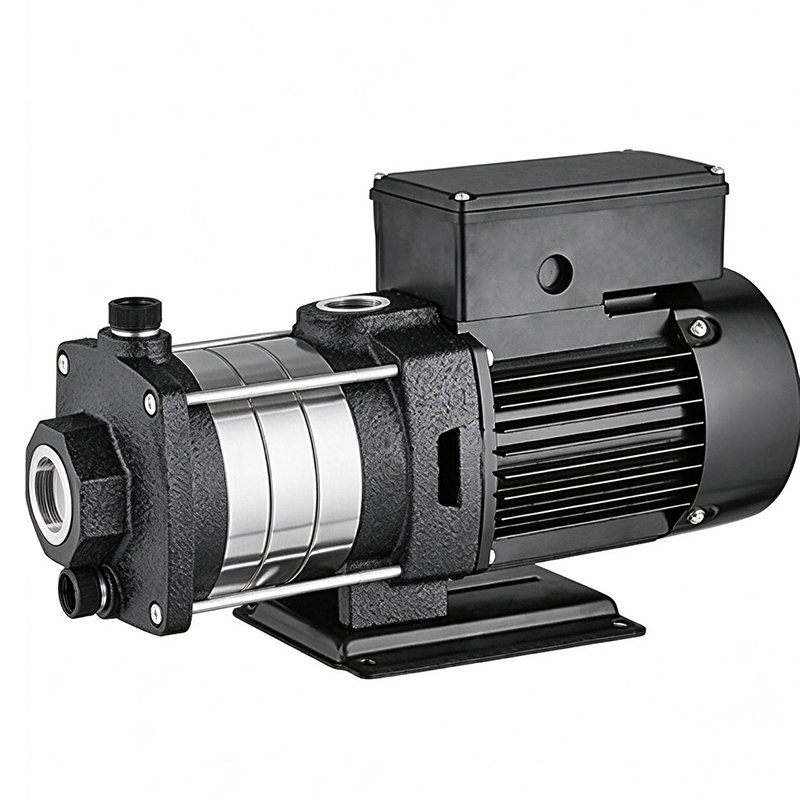

≋ SR Horizontal Multistage Centrifugal Electric Pump

∿ We are a Chinese manufacturer and supplier offering high-quality, high-performance water pumps.

◍ SR stainless steel impeller pump is used in pressure boosting and water supply systems for clean water.

✓ Reliable Structure for Continuous Water Delivery

★ Heavy-duty Casing • Efficient Motor • Built to Last

Product Description

SR series multistage non-self priming centrifugal pump mainly used in industrial field: industrial cleaning, water treatment, agriculture, air-conditioning system, enviromental application etc.

Operation Coditions

Maximum fluid temperature up to +40℃

Maximum sand content: 0.25%

Maximum suction lift: 8m

Features

Rewindable motor

Single-phase:220-240V/50Hz

Three-phase:380-415V/50Hz

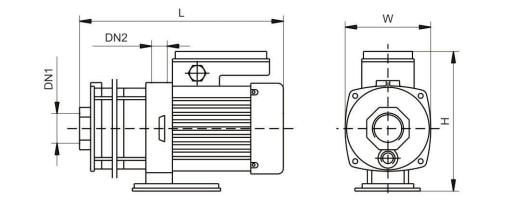

MODEL	DN1	DN2	DIMENSIONS(mm)			WEIGHTS(kg)
			W	H	L	1~	3~
SR(m)203	1″	1″	123	210	342	10.5	10
SR(m)204	1″	1″	123	210	362	11	10.5
SR(m)205	1″	1″	123	210	382	11.5	11
SR(m)206	1″	1″	123	210	437	12.5	12
SR(m)403	1″	1″	123	210	348	11	10.5
SR(m)404	1″	1″	123	210	371	12.5	12
SR(m)405	1″	1″	123	210	429	14	13.5
SR(m)406	1″	1″	123	210	452	14.5	14
SR(m)603	1″	1″	123	210	356	13	12.5
SR(m)604	1″	1″	123	210	418	13.5	13
SR(m)605	1″	1″	123	210	445	14.5	14
SR(m)606	1″	1″	123	210	472	15.5	14.5
