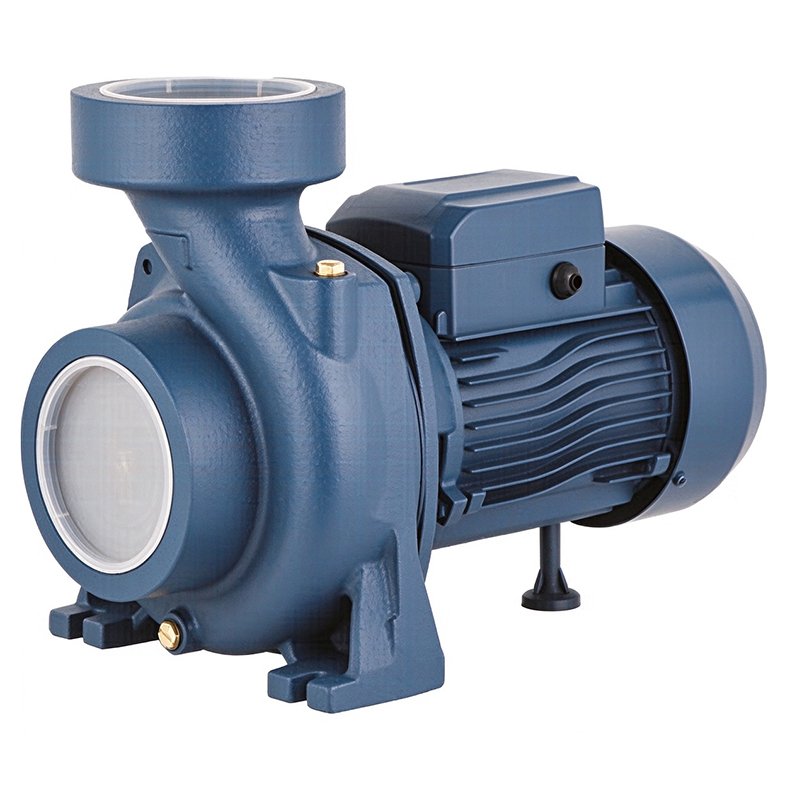

Centrifugal pump—-CPFM Series Centrifugal Pump
CPFM
≋ CPFM Centrifugal Pump
∿ We are a Chinese manufacturer and supplier offering high-quality, high-performance water pumps.
✓ Reliable Structure for Continuous Water Delivery
★ Heavy-duty Casing • Efficient Motor • Built to Last
Product Description
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Operation Coditions
Maximum fluid temperature up to +40℃
Maximum sand content: 0.25%
Maximum suction lift: 7m
Features
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Impeller material: brass

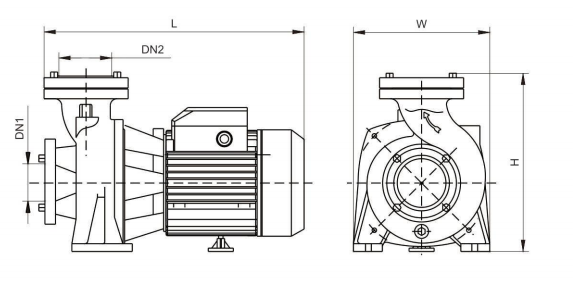

| MODEL | DN1 | DN2 | DIMENSIONS(mm) | WEIGHTS(kg) | |||
|---|---|---|---|---|---|---|---|
| W | H | L | 1~ | 3~ | |||
| CPF(m)125/2 | 2″ | 2″ | 195 | 266 | 352 | 15 | 14 |
| CPF(m)150/2 | 2″ | 2″ | 243 | 317 | 400 | 21 | 20 |
| CPF(m)200/2 | 2″ | 2″ | 243 | 317 | 400 | 22 | 21 |
| CPF(m)200/3 | 3″ | 3″ | 243 | 317 | 400 | 26 | 25 |
| CPF(m)300/3 | 3″ | 3″ | 243 | 317 | 400 | 27 | 26 |
Optional Available On Request
Special mechanical seal
Other voltages or frequency 60 Hz

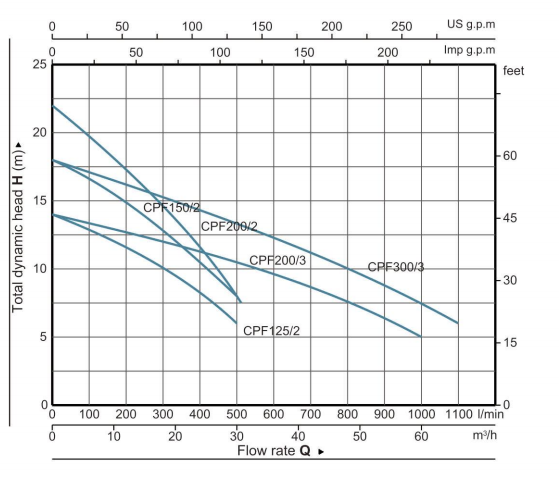

Performance Curve
