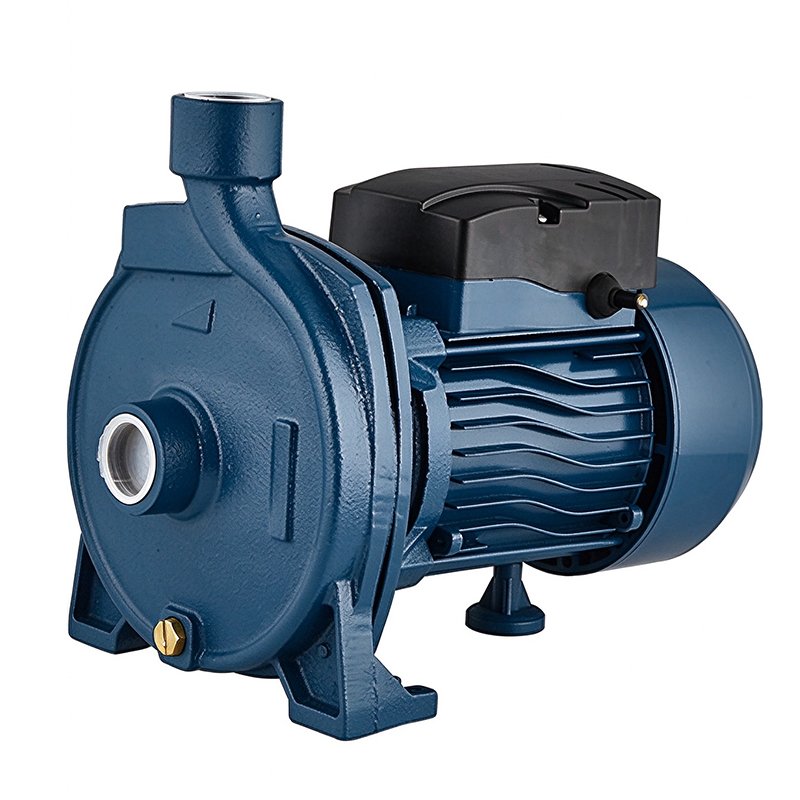

Centrifugal Monoblock Electric Pump-CPM Series Centrifugal Pump -

CPM Series

≋ CPM Centrifugal Monoblock Electric Pump

∿ We are a Chinese manufacturer and supplier offering high-quality, high-performance water pumps.

✓ Reliable Structure for Continuous Water Delivery

★ CPm series are single stage centrifugal pumps which are used to transfer clean water.

Product Description

CPM series are single stage centrifugal pumps,can be used to transfer clean water. It is suitable for industrial use and urban water supply, pressure boosting for high buildings and fire system,garden irrigation,long-distance water transfer,heating ventilation and air controlling,circulation and pressure boosting for cold water,and supporting equipment etc

Operation Coditions

Maximum fluid temperature up to +40℃

Maximum sand content: 0.25%

Maximum suction lift: 9m

Features

Rewindable motor

Single-phase:220-240V/50Hz

Three-phase:380-415V/50Hz

Impeller material: stainless steel or brass

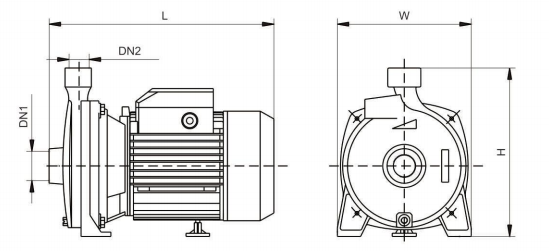

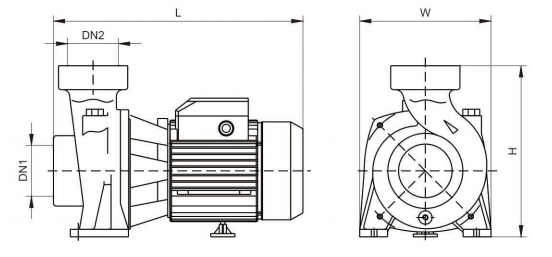

MODEL	DN1	DN2	DIMENSIONS(mm)			WEIGHTS(kg)
			W	H	L	1~	3~
CP(m)130/1	1″	1″	168	265	265	8.5	7.5
CP(m)145/1	1″	1″	195	247	311	11.5	11
CP(m)155/1	1″	1″	195	247	311	12	11.5
CP(m)175/1	1″	1″	195	247	311	12	11.5
CP(m)170/1	1″	1″	204	258	348	19	18
CP(m)175/1	1½”	1½”	204	258	348	19	18
CP(m)190/1	1″	1″	232	287	348	21.5	20.5
CP(m)100/1.5	1½”	1½”	190	246	319	14	13.5
CP(m)150/2	2″	2″	207	259	369	18	17
CP(m)200/2	2″	2″	207	259	369	19	18
CP(m)200/3	3″	3″	238	313	392	25	24
CP(m)300/3	3″	3″	238	313	392	26	25
CP(m)300/4	4″	4″	238	313	431	29	28
CP(m)400/4	4″	4″	238	313	431	32	31
