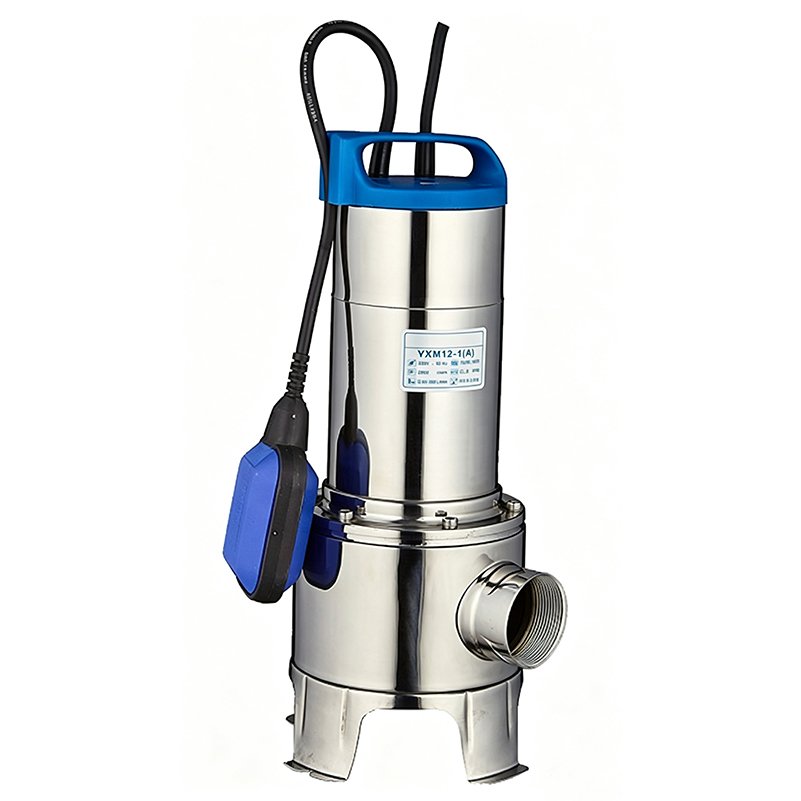

Stainless Steel Submersible Sump Pump—–VX10 Series Sewage Pump
VX10 series
≋ VX Stainless steel Sump Submersible Pump
∿ We are a Chinese manufacturer and supplier offering high-quality, high-performance water pumps.
◍ VX series provides high flow and quick drainage for the submersible sump pump in low noise.
✓ Reliable Structure for Continuous Water Delivery
★ Heavy-duty Casing • Efficient Motor • Built to Last
Product Description
The VXD series submersible sewage water pump is suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.They are easy to use, they are suitable for use in applications such as clearing dirty water,discharging domestic waster water,and for emptying collection traps containing particle up to a maximum of φ35mm.
Operation Coditions
Maximum fluid temperature up to +40℃
Maximum solid can pass:35mm
Features
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
It’s available to equip with floating switch
| Components | Material |
|---|---|
| Delivery casing | AISI 304 SS |
| Suction lantern | AISI 304 SS |
| Diffuser | AISI 304 SS / Cast-iron G20 UNI5007 |
| Impeller | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top chock | AISI 304 SS |
| Bottom support | AISI 304 SS |
| Mechanical seal | Graphite-Ceramic |
| Shaft | AISI 304 SS-ASTM5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
Optional Available On Request
Other voltages or frequency 60Hz
Cast iron pump body available
Float Switch for optional

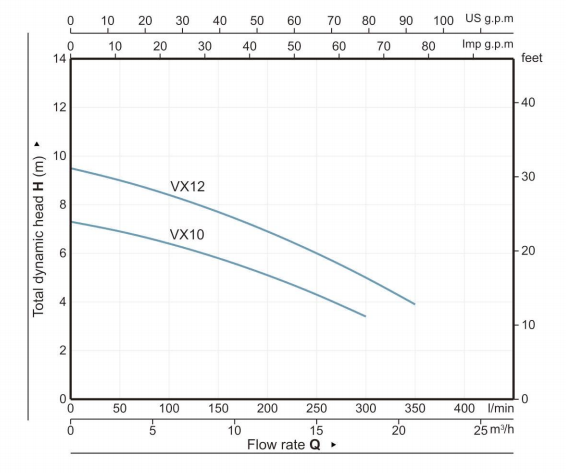

Performance Curve
