Modern standardized refrigerator production lines (including sheet metal processing, foaming, general assembly, testing, packaging and other processes) feature high flexibility, capable of manufacturing all categories of household refrigerators and some commercial freezers. Below is a detailed introduction to applicable refrigerator types, technical characteristics and product features classified by door structure and mainstream application scenarios.

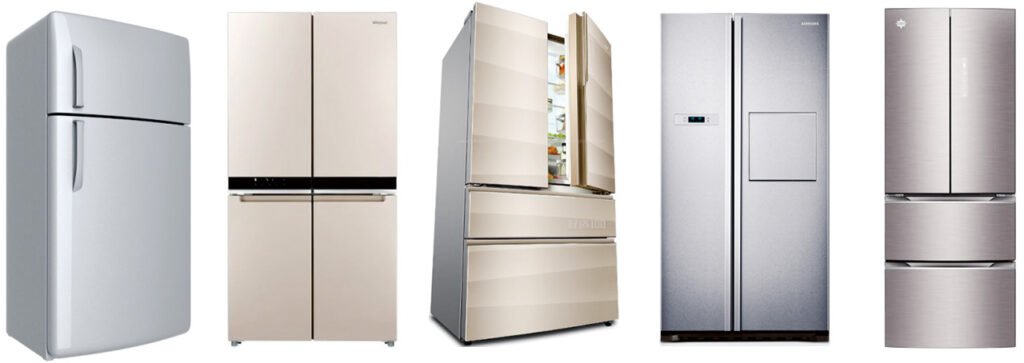

Fridge Assembly Lines/Production Lines are Suitable to Assemble/Produce Fridges or freezers. (If clients have more requirements or want to produce the other fridges or freezers, welcome to contact us.)

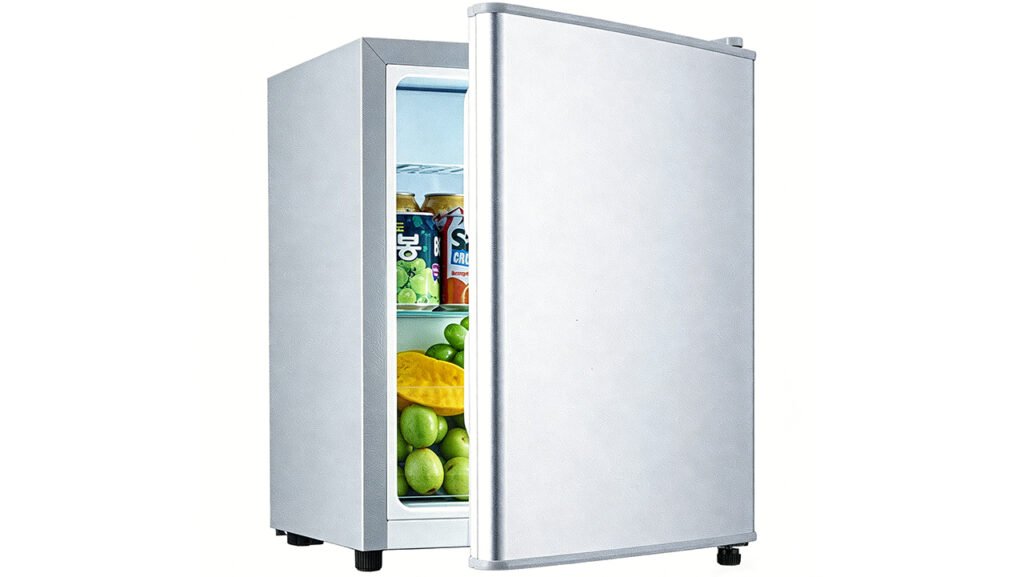

1. Single-Door Refrigerators (Mini/Small Capacity)

Production Line Adaptability: Simplest structure, fastest production tempo (approx. 9–15 seconds per unit), suitable for mass and economical production.

• Capacity: 50–150L
• Structure: Integrated single door, main refrigeration compartment with a mini freezing zone on top (no independent freezer)
• Cooling Method: Mainly direct cooling (frost-type), low cost and energy-saving
• Application: Singles, renters, dormitories, offices, hotel rooms

2. Double-Door Refrigerators (Top-Bottom Compartments)

Production Line Adaptability: Classic basic model with mature automation, highest cost performance.

• Capacity: 150–250L
• Structure: Refrigerator on top, freezer at bottom (independent dual-temperature zones)
• Cooling Method: Optional direct cooling or frost-free fan cooling
• Application: Couples, senior rooms, small-sized households

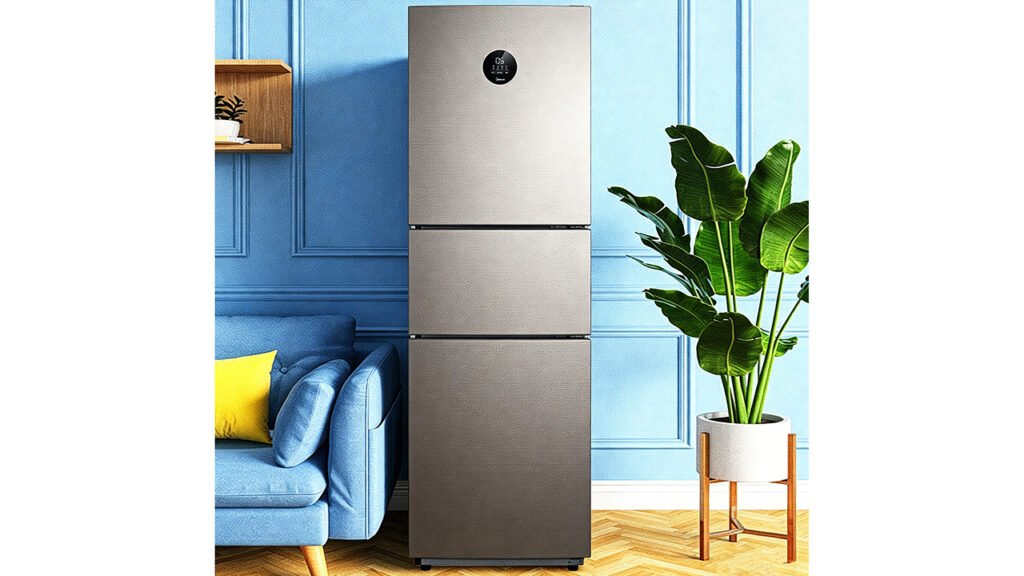

3. Three-Door Refrigerators (Refrigeration/Freezing/Variable Temperature)

Production Line Adaptability: Added middle variable temperature compartment on the basis of double-door models, medium process complexity.

• Capacity: 200–350L
• Structure: Refrigerator on top, variable temperature compartment in the middle (switchable between 0℃/-7℃ soft freezing/refrigeration), freezer at bottom
• Features: Three independent temperature zones, suitable for maternal and infant care, short-term fresh-keeping of meat
• Application: Families of three, users with classified food storage needs

4. Side-by-Side Refrigerators (Left-Right Double Doors)

Production Line Adaptability: Large volume and long cabinet, requiring large-size sheet metal/foaming molds, mass-produced on high-end lines.

• Capacity: 400–650L+
• Structure: Freezer on left, refrigerator on right, symmetrical and high-end appearance
• Cooling Method: Frost-free fan cooling, dual/multi-circulation (anti-odor)
• Disadvantage: Large cold air loss when opening doors, rough zoning
• Application: Large apartments, large families, bulk food storage users

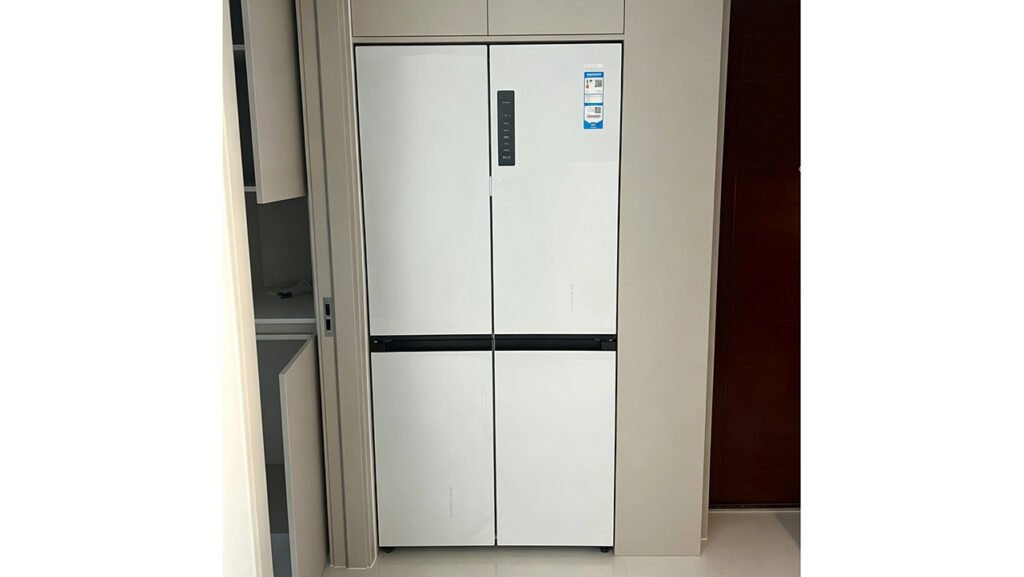

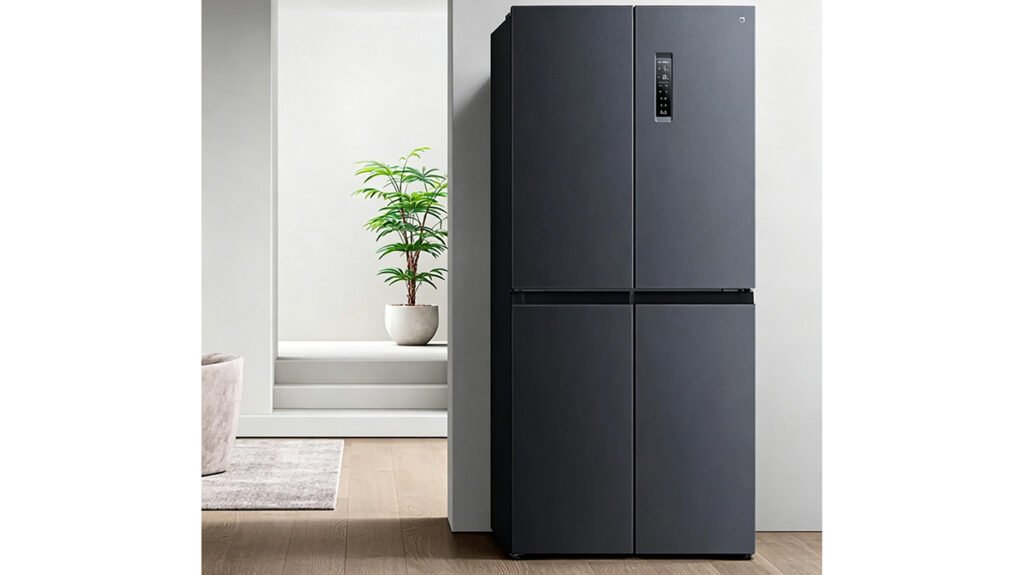

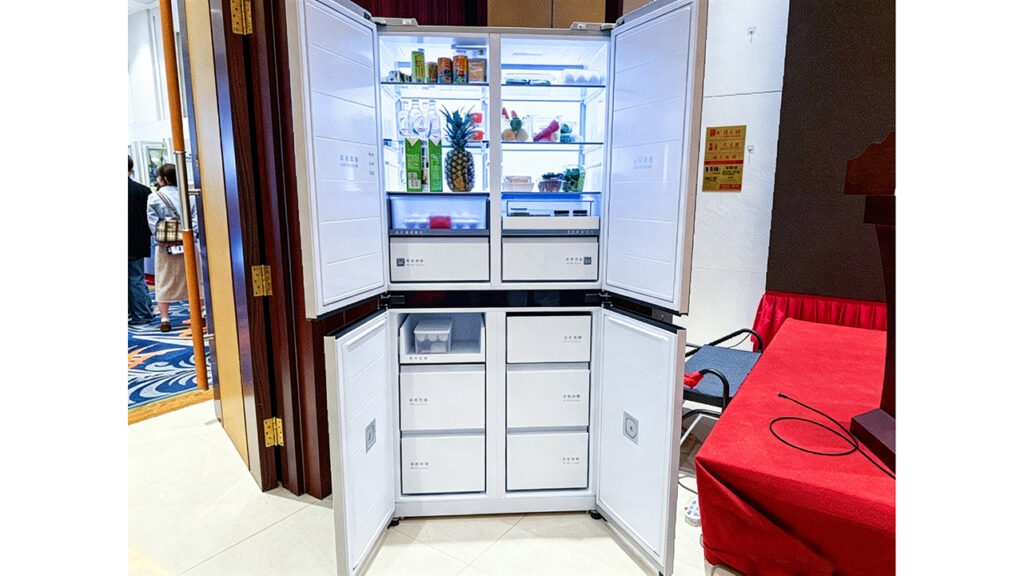

5. Cross French Door Refrigerators (Four Doors)

Production Line Adaptability: Current mainstream household model with complex sheet metal and door structure, prioritized production on flexible lines.

• Capacity: 400–600L (golden household range)
• Structure: Double-door refrigerator on top, double-door freezer at bottom (four refined zones)
• Advantages: Clear zoning, strong anti-odor performance, adaptable to Chinese kitchen sizes
• Technologies: Dual evaporators, dual inverter, frost-free fan cooling, odor removal and sterilization

6. French Multi-Door Refrigerators (Top Side-by-Side + Bottom Large Drawers)

Production Line Adaptability: Large freezing drawers and complex structure, produced on high-end intelligent lines.

• Capacity: 450–700L
• Structure: Side-by-side refrigerator on top, 1–2 large freezing drawers at bottom
• Advantages: Wide and deep freezing space for large food like whole lamb legs and whole fish
• Application: Families focusing on frozen bulk storage and large-size food preservation

7. Ultra-Thin Built-In Refrigerators (Flush with Cabinets)

Production Line Adaptability: Thin cabinet (45–60cm), bottom heat dissipation, special hinges, produced on high-end customized lines.

• Thickness: 45cm (industry’s thinnest) / 60cm standard built-in size
• Features: Fully flush integrated design, only 2mm gaps on both sides, no heat dissipation gap at the back
• Technologies: gull-wing hinges, strong bottom exhaust heat dissipation, ultra-thin foaming layer

8. Maternal & Infant / Special Function Refrigerators

Production Line Adaptability: Requires additional special compartments, certified inner liners and precise temperature control modules.

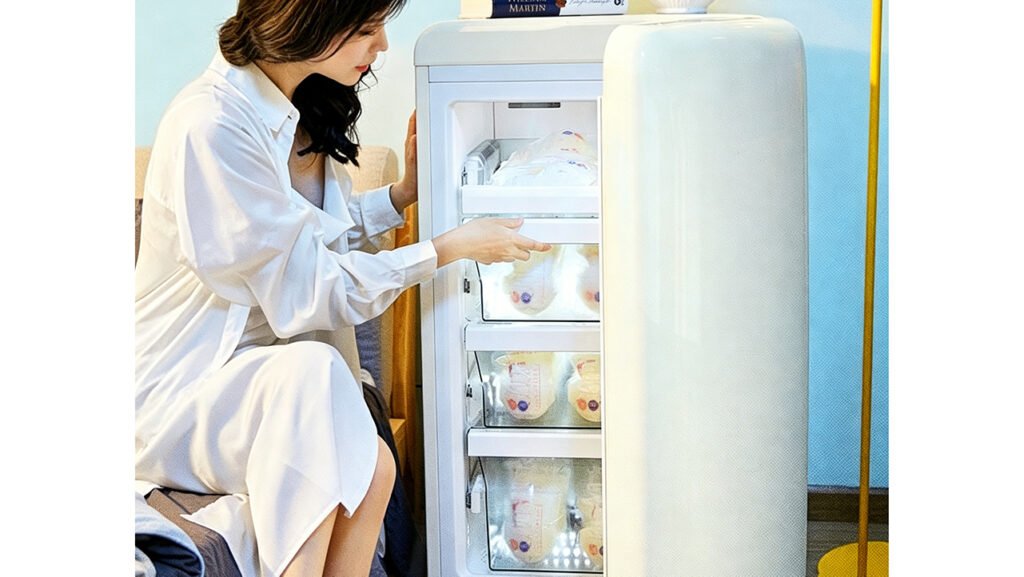

• Maternal & Infant Refrigerators: Independent maternal & infant compartment (constant 4℃), food-grade inner liner (BPA-free), full-cycle fresh storage
• Zero-Degree Fresh-Keeping Refrigerators: Intelligent zero-degree zone, sealed air duct, real-time NTC temperature measurement, non-freezing food storage
• Application: Pregnant/lactating families, high-end food preservation

9. T-Door / Wide-Range Variable Temperature Refrigerators

Production Line Adaptability: Independent three-temperature zones with complex electronic control, produced on medium-to-high end flexible lines.

• Structure: Refrigerator on top, freezer at bottom left, wide-range variable temperature compartment at bottom right (adjustable from -20℃ to 5℃)
• Capacity: 500–700L
• Advantages: Multi-purpose (freely switchable between refrigeration, freezing, zero-degree, maternal & infant, dry food zones)

Characteristics of a Modern Refrigerator Production Line

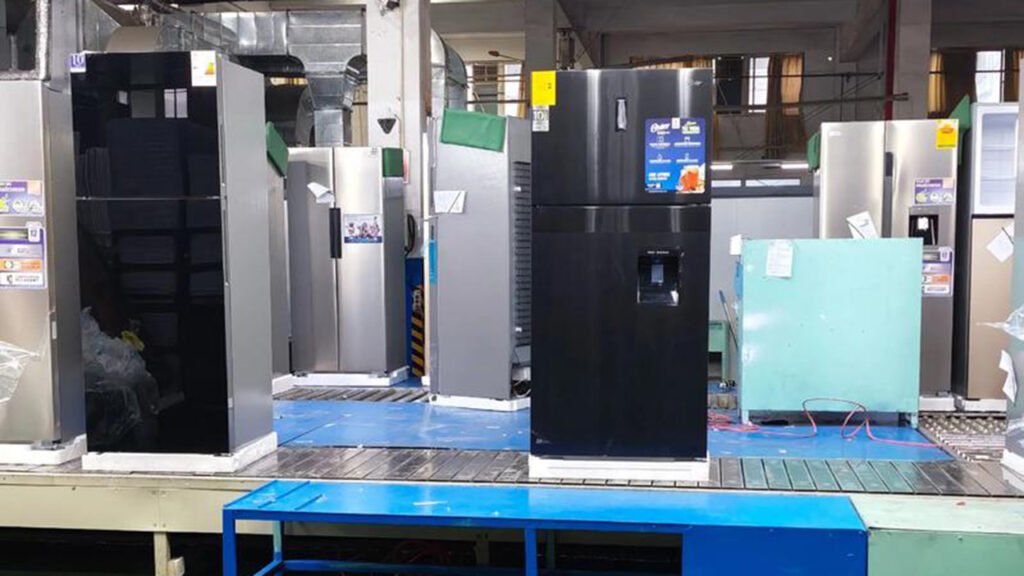

A complete modern refrigerator manufacturing line is a highly integrated, automated, and flexible production system covering sheet metal processing, foaming, assembly, refrigerant charging, leak detection, performance testing, packaging, and warehousing. It has the following core characteristics:

1. High Degree of Automation

The line adopts a high level of automation equipment throughout the entire process:

• Automatic sheet metal blanking, bending, punching, and robotic welding
• Automatic high-pressure foaming with precise control of temperature, pressure, and material ratio
• Robotic handling for door body, liner, cabinet, and compressor installation
• Automatic refrigerant charging, vacuum pumping, and oil injection
• Automatic leak detection, electrical safety test, and performance inspection

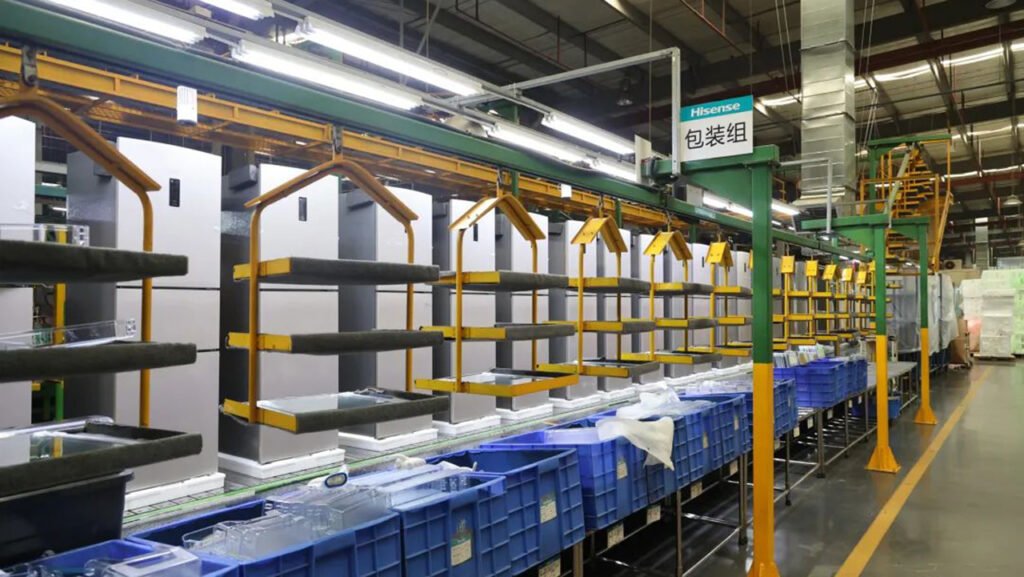

• Automatic packaging, labeling, strapping, and palletizing

This greatly reduces manual labor, improves production consistency, and ensures stable product quality.

2. Flexible & Mixed-Model Production Capability

The line is designed with modular tooling, quick-change fixtures, and programmable logic controllers (PLC), enabling:

• Simultaneous or sequential production of single-door, double-door, three-door, side-by-side, French door, cross door, built-in, and commercial refrigerators
• Quick switching between different models and specifications within short downtime
• Adaptation to various sizes, structures, and configurations without major line modification
• Support for small-batch customized production and large-volume mass production

This makes the line adaptable to market demand changes.

3. Stable & Controllable Production Beat

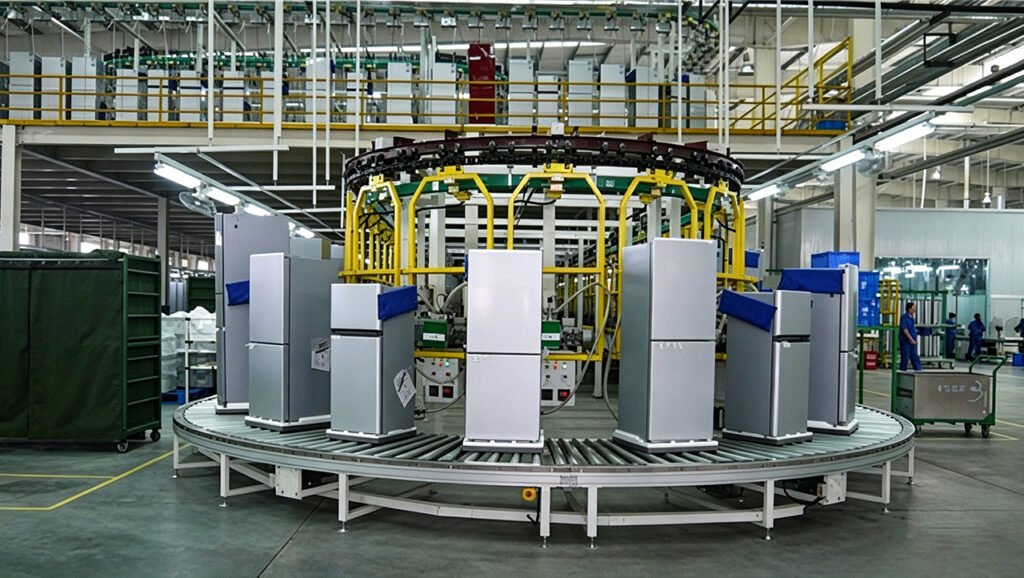

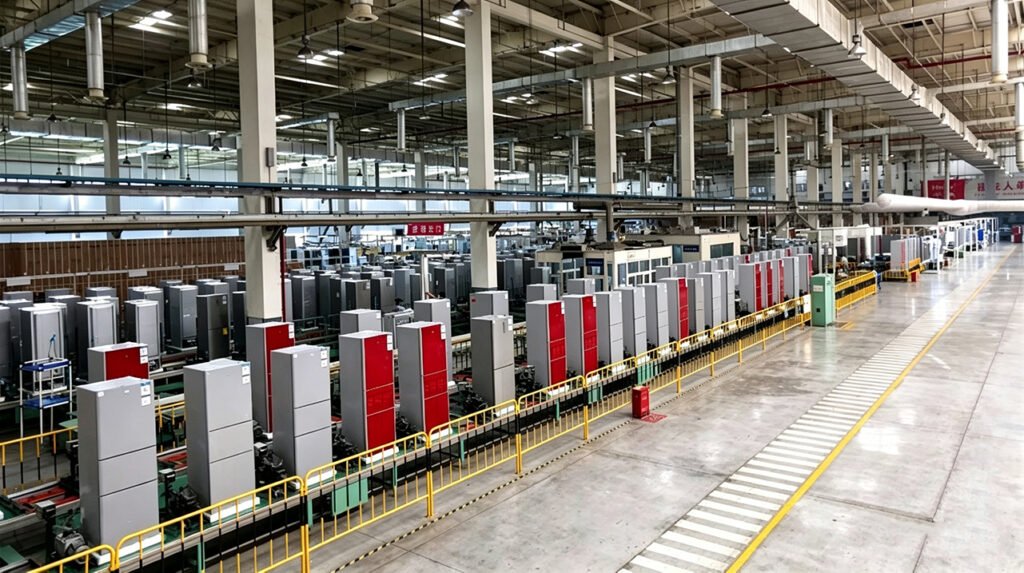

The line adopts a continuous conveying system (powered roller conveyor, overhead conveyor, skid conveyor) to achieve a balanced and stable production tempo.

• Typical beat: 10–25 seconds per unit
• Synchronous operation of each station to avoid bottlenecks
• Real-time monitoring of production progress, fault alarm, and data statistics
• High line efficiency and uptime, suitable for large-scale annual output

4. Strict Quality Control & Testing System

Quality assurance is embedded in every process:

• Cabinet dimensional inspection after foaming
• Helium or refrigerant leak detection for the refrigeration system
• Insulation performance and energy efficiency testing
• Running current, temperature control accuracy, and noise testing
• Door seal performance, opening/closing durability inspection
• Appearance, color difference, and surface defect detection

Unqualified products are automatically identified and diverted to the repair station, ensuring only qualified products enter the market.

5. Advanced Refrigeration System Process

The line supports modern high-efficiency refrigeration technologies:

• Inverter compressor assembly
• Dual-cycle, multi-cycle, and independent air duct systems
• Automatic vacuuming and precise refrigerant charging
• Frost-free, air-cooled, direct-cooled, and hybrid cooling processes
• Environmentally friendly refrigerant application (R600a, R290, etc.)

6. High Safety & Environmental Protection Performance

The production line meets industrial safety and environmental requirements:

• Explosion-proof design for flammable refrigerant charging area
• Waste foam, waste refrigerant, and waste oil recovery system
• Dust removal, noise reduction, and ventilation systems
• Safety interlocks, emergency stop, and fire protection systems

7. Intelligent Production & Digital Management

The line is equipped with an intelligent manufacturing management system:

• MES (Manufacturing Execution System) for production scheduling
• Real-time data collection of process parameters
• Product barcode traceability throughout the whole process
• Remote monitoring, fault diagnosis, and production analysis
• Data docking with ERP for order, material, and quality management

This realizes digital, visual, and intelligent production management.

8. Strong Scalability & Expandability

The line structure is modular and reserved with expansion interfaces:

• Can increase stations such as ice maker, water dispenser, smart touch panel
• Can upgrade to higher automation or intelligent detection
• Can expand production capacity by adding conveying sections or parallel lines
• Adaptable to future new processes, new materials, and new product structures

9. High Energy Efficiency & Low Consumption

The equipment adopts energy-saving design:

• High-efficiency foaming system to reduce raw material waste
• Energy-saving motors and frequency conversion control
• Optimized air pressure, water, and electricity distribution
• Reduced defective rate and rework rate

This effectively reduces unit production cost.
