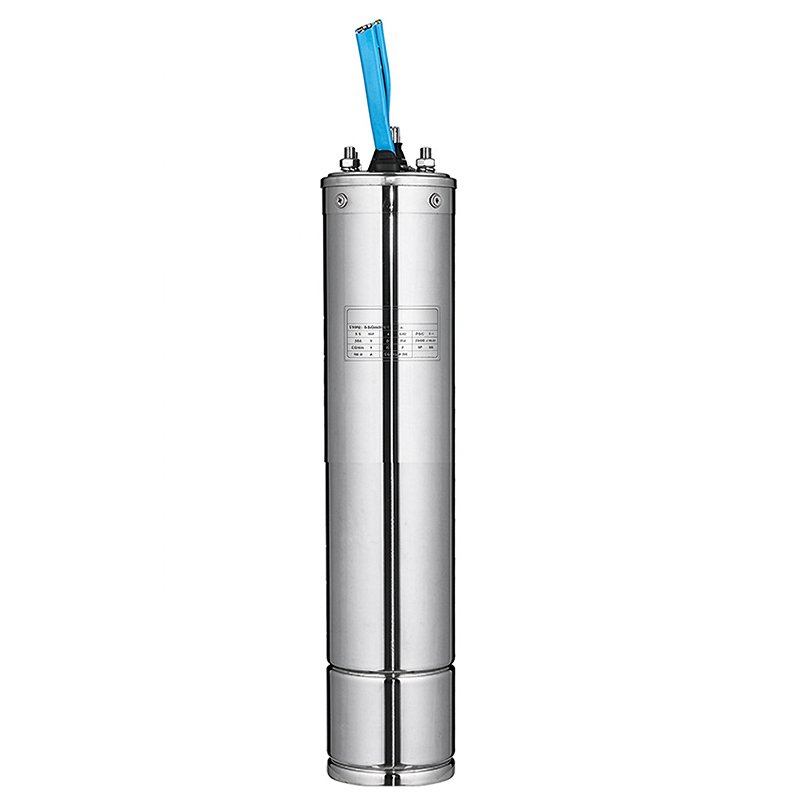

Submersible Motors–-5YS Series Oil filled Submersible Motor
5YS series
≋ 5YS Oil filled Submersible Motor
∿ We provide a wide range of deep well submersible pumps from 2” to 10” which are designed for transferring water from wells, ponds, lakes and cisterns.
◍ 5YS series motors are suitable for wells over φ130mm
✓ Reliable Structure for Continuous Operation
★ Stainless Steel Shaft • Efficient Motor • Built to Last
Product Description
For water supply from wells or reservoirs
For domestic use,for civil and industrial applications
For garden use and irrigation
Operation Coditions
Speed: 2850rpm
Insulation class: F
Protection grade: IP 68
Maximum fluid temperature up to +35°C
Minimum well diameter: 5″
Features
Rewindable motor
Single-phase:220-240V/50Hz
Three-phase:380-415V/50Hz
Equip with start control box or digital auto-control box
| Components | Material |
|---|---|
| Motor external casing | AISI 304 SS |
| Top chock | Cast-iron ASTM N0.30 |
| Cast-Cu ASTM C85500 | |
| Bottom support | AISI 304 SS |
| Mechanical seal | Special seal for deep well(Graphite-Ceramic) |
| Shaft | AISI304 SS-ASTM 5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
Optional Available On Request
Special mechanical seal
Other voltages or frequency 60Hz

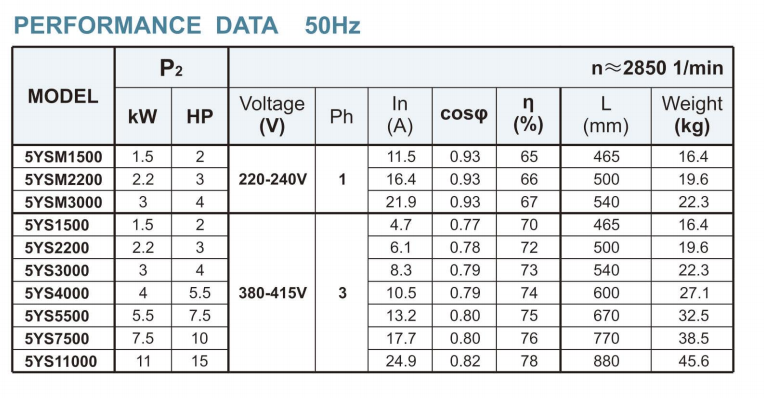

Performance Curve
