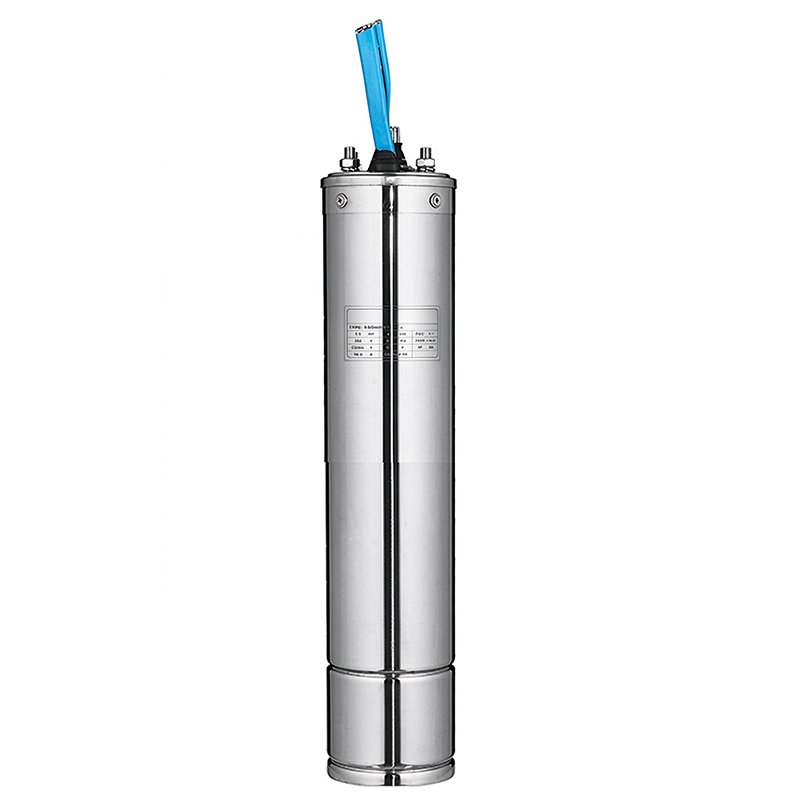

≋ 4YS Oil filled Submersible Motor

∿ We provide a wide range of deep well submersible pumps from 2” to 10” which are designed for transferring water from wells, ponds, lakes and cisterns.

◍ 4YS series motors are suitable for wells over φ100mm

✓ Reliable Structure for Continuous Operation

★ Stainless Steel Shaft • Efficient Motor • Built to Last

Product Description

For water supply from wells or reservoirs

For domestic use,for civil and industrial applications

For garden use and irrigation

Operation Coditions

Speed: 2850rpm

Insulation class: F
Protection grade: IP 68

Maximum fluid temperature up to +35°C

Minimum well diameter: 4″

Features

Rewindable motor

Single-phase:220-240V/50Hz

Three-phase:380-415V/50Hz

Equip with start control box or digital auto-control box

Components	Material
Motor external casing	AISI 304 SS
Top chock	Cast-Cu ASTM C85500
	Cast-iron ASTM NO.30
	AISI 304 SS
Bottom support	AISI 304 SS
Mechanical seal	Special seal for deep well(Graphite-Ceramic)
Shaft	AISI 304 SS-ASTM 5140
Seal lubricant oil	Oil for food machinery and pharmaceutic use.
