What is an SKD AC(Air Conditioner) Assembly Line?—SKD Air Conditioner Production Line

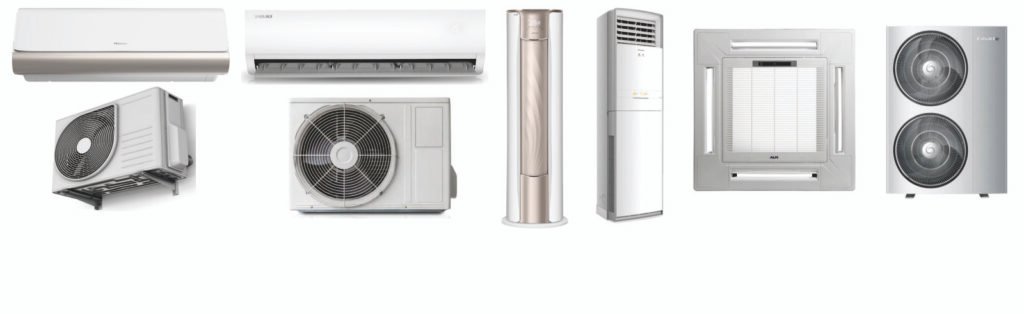

Air Conditioner Assembly Lines/Production Lines are Suitable to Assemble/Produce Air Conditioners.(Welcome to contact us, we will suggest and design the suitable Assembly Lines/Production Lines for your Air conditioners.)

The SKD Air Conditioning Assembly Line is an important stage or a specific model for establishing a complete assembly factory.

SKD, which stands for Semi-Knocked Down, refers to assembling major air conditioning components in near-complete module forms. It is an entry-level assembly model with relatively small investment and fast results.

I. Main Process Flow of an SKD Assembly Line

A typical SKD air conditioning assembly line mainly includes the following stations:

  1. Loading and Chassis Installation: Prefabricated chassis and casing are loaded onto the line.
  2. Core Module Installation:
    • Install the pre-assembled compressor (usually with base and vibration pads).
    • Install the pre-assembled indoor unit evaporator assembly and outdoor unit condenser assembly (with fins already installed and pipe connections welded).
    • Install the electrical control box assembly (with PCBA already installed in the box).
  3. Tubing Connection and Welding: Position the connecting copper pipes between modules and perform brazing (flame welding or nitrogen-protected brazing). This is a key technical and quality control point on the SKD line.
  4. Leak Detection: Perform leak detection on the welded system (commonly using helium mass spectrometry or underwater bubble testing).
  5. Vacuuming and Drying: Use a vacuum pump to evacuate the system piping to a high vacuum to remove moisture and air.
  6. Refrigerant Charging: Charge a quantitative of refrigerant (e.g., R32, R410A) according to the model.

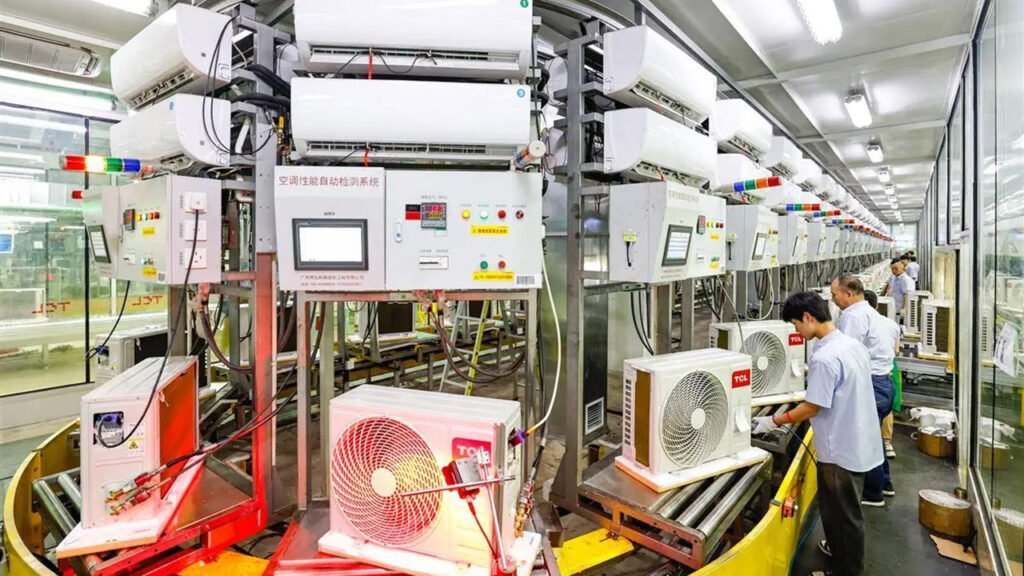

  7. Performance Testing: Power on and run the unit in an online test chamber, simulating cooling/heating conditions to test key parameters (current, pressure, outlet air temperature, noise, etc.).
  8. Final Assembly and Packaging: Install fans, fan blades, panels, apply labels, and proceed to packing and palletizing.

II. Key Steps to Establish an SKD Assembly Line (Simplified)

  1. Define Module Sourcing Strategy: Negotiate with upstream suppliers (could be the parent company or third-party module factories) to determine which modules to purchase (e.g., heat exchanger assemblies, compressor modules, electrical control assemblies) and which simple parts to source locally (e.g., screws, packaging materials).

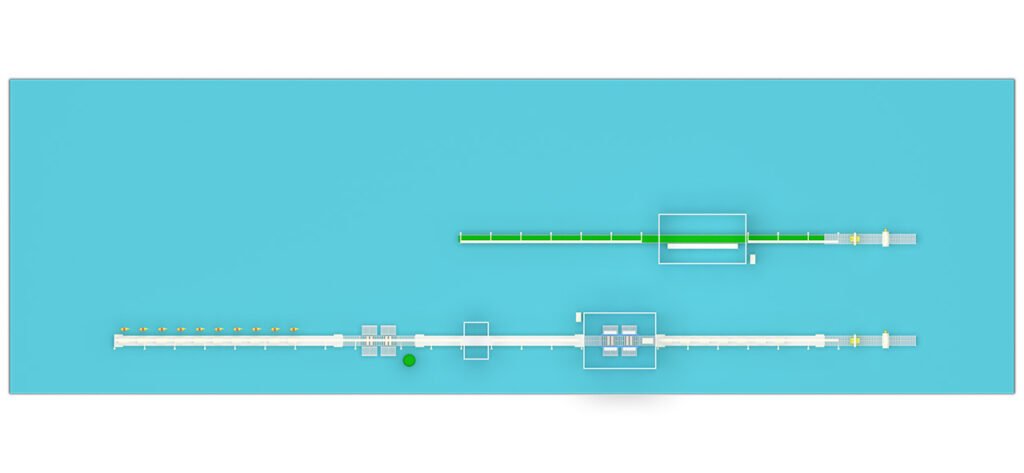

  2. Design Production Line Layout: Design one or several U-shaped or linear assembly lines based on production cycle time (e.g., hourly/daily output), and plan material feeding routes.
  3. Core Equipment Procurement:
    • Conveyor Lines: Chain-on-edge or roller conveyors.
    • Welding Equipment: Torches, pressure regulators, nitrogen cylinders, and piping.
    • Vacuum and Charging Equipment: Vacuum pumps, electronic scales, refrigerant charging machines.
    • Leak Detection Equipment: Helium leak detectors or bubble test tanks.
    • Testing Equipment: Online performance test chambers (the core and most expensive testing equipment), electrical safety testers.
    • Tools: Torque-controlled electric screwdrivers, tube cutters, flaring tools.
  4. Establish Quality System: Focus on Incoming Quality Control (for purchased modules), In-Process Inspection (welding quality, cleanliness), and Final Testing (performance pass rate). Welders must be certified.
  5. Personnel Training: Training focuses on safety regulations (especially for refrigerant and welding), standard operating procedures, and quality judgment.

III. Advantages and Risks

  • Advantages:
    • Rapid startup, enabling quick response to market demand.
    • Reduces investment risk and technical barriers.
    • Easier to manage, focusing on final assembly and testing.
    • Benefits from tariff, logistics, and other cost advantages of localized production.
  • Risks and Challenges:
    • High dependency on the supply chain, as module supply and pricing are controlled by others.
    • Thin profit margins due to fewer value-added steps.
    • Quality control heavily relies on suppliers; incoming material issues can halt the entire line.
    • Limited technological advancement, making it difficult to accumulate deep expertise in core component manufacturing and system matching.

Summary and Recommendations

For many companies, SKD is a very pragmatic and efficient choice for entering the air conditioning manufacturing sector. It is often used as:

  • The first step for testing the market.
  • A transitional phase for shifting from trading to manufacturing.
  • A strategy to achieve a “locally produced” label in the target sales region to meet policy or customer requirements.

The keys to success are: selecting reliable and collaborative module suppliers, establishing strict and efficient incoming inspection and assembly/testing processes, and cultivating a skilled and stable team of on-site technical workers.

Once the SKD model operates maturely, the company can gradually extend upstream, transitioning some modules (e.g., heat exchangers) to in-house production, moving towards a CKD model to increase profits and competitiveness.
