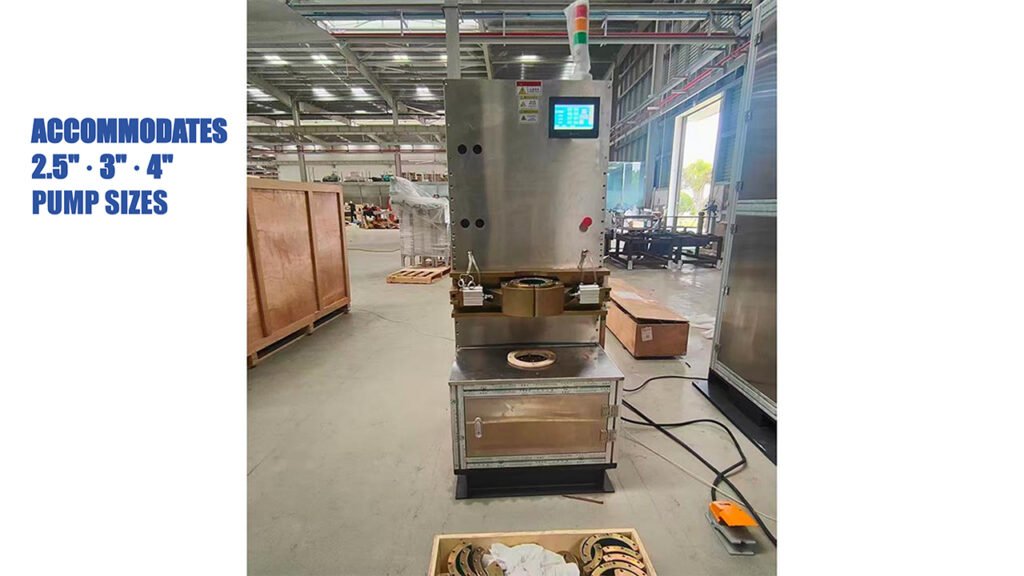

Submersible Pump Production Line: Submersible Pump Water Inlet Connector Tightening Machine for different range of the Pump sizes and inches
Submersible Pump Water Inlet Connector Tightening Machine is a specialized automated equipment designed to precisely fasten the water inlet connector onto the pump body, ensuring a watertight seal. Its core features mainly include heavy-duty rigid construction to withstand reaction forces, and customized quick-change tooling to accommodate different models. The machine offers semi-automatic or fully automatic modes. Widely used in assembly lines for deep well pumps and industrial pumps, it effectively improves assembly quality and efficiency.
A Submersible Pump Water Inlet Connector Tightening Machine is a specialized piece of automated or semi-automated assembly equipment designed to securely fasten the water inlet connector (also known as the suction cover or strainer base) onto the main body of a submersible pump.
In the production of submersible pumps, ensuring a watertight and mechanically stable connection at the inlet is critical to prevent leaks and motor burnout. This machine automates that process.
I. Purpose and Function
The primary function of this machine is to precisely tighten the threaded connection between the pump housing and the inlet cover. It ensures that the component is tightened to a specific torque value, guaranteeing a perfect seal (often with an O-ring or gasket) without damaging the threads or the pump casing.
II. Key Characteristics
- Heavy-Duty and Rigid Construction
- To handle the high torque reactions, the machine features a robust steel frame. It is designed to hold the pump body stationary while the tightening head operates, or vice versa, preventing distortion of the parts.
- Specialized Tooling and Fixtures
- The machine is fitted with custom-designed tooling (such as pin spanners, multi-jaw chucks, or custom sockets) that matches the specific geometry of the water inlet connector.
- Quick-change fixtures allow the machine to accommodate different pump sizes and connector types on the same production line.
- Automation Level Options
- Semi-Automatic: An operator loads the pump and the connector into the fixture and pushes a button. The machine automatically runs the tightening cycle and then releases the part.
- Fully Automatic: The machine is integrated into an assembly line with conveyors and robots. Pumps are automatically positioned, tightened, and sent to the next station without human intervention.
III. Applications
- Deep Well Pumps: Assembling the suction strainer base.
- Borehole Pumps: Attaching the water inlet end cap.
- General Industrial Pumps: Assembling any threaded inlet/outlet connections that require a precise, repeatable, and high-integrity seal.
