Introduction to Parts of CNC Lathes for Motorcycle Manufacturing

CNC lathes are widely used in motorcycle manufacturing for machining core rotary parts, featuring cost-effectiveness, localized after-sales support, and customizable configurations. Below are the mainstream models and their applications:

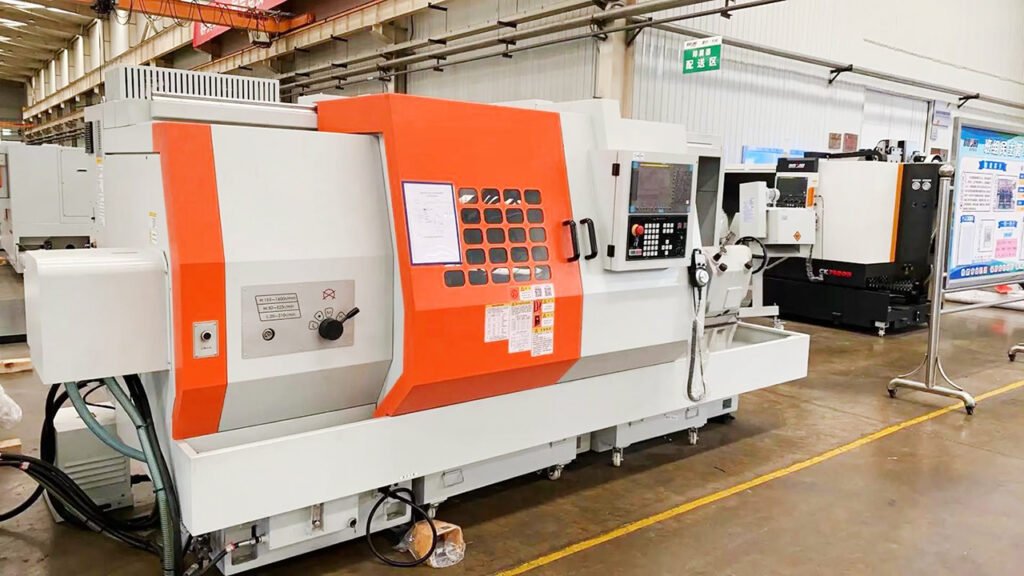

1. Horizontal Inclined Bed CNC Lathe (Mainstream for Mass Production)

  • Structure: 45° inclined bed, 3-speed mechanical transmission + servo stepless speed regulation, servo turret, hydraulic chuck, and excellent chip removal. Precision level: IT6–IT7.
  • Motorcycle Applications: Batch processing of general rotary parts such as crankshafts, camshafts, wheel hubs, pistons, and valves.
  • Advantages: High rigidity, moderate price, low maintenance cost, suitable for mid-to-high-end production lines of motorcycle manufacturers.
CNC Lathe

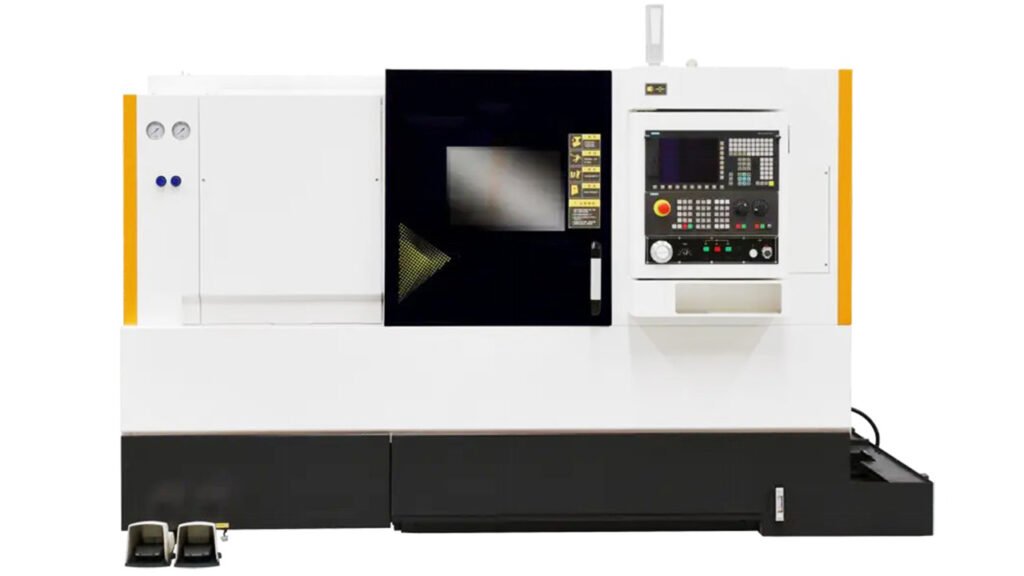

2. Turn-Mill Complex Machining Center (One-Clamping for Complex Precision Parts)

Dual electric spindles, 12-station servo-driven tool turret, with Y-axis + dual C-axis. It can complete turning, milling, drilling, and tapping in one clamping. Suitable for high-performance engine crankshafts and racing-grade complex shafts.

CNC Lathe

Dual-channel, dual-spindle, 4-axis linkage, with a driven tool turret and integrated chip conveyor. Suitable for camshafts and shift shafts with eccentric holes.

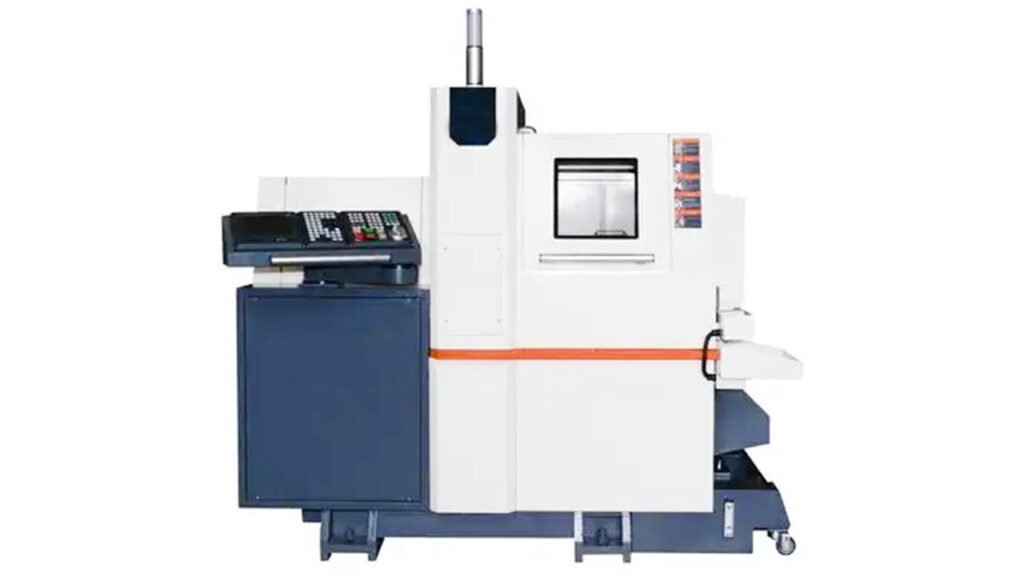

3. Dual-Spindle / Opposed-Spindle CNC Lathe (Simultaneous Machining of Both Ends of Long Shafts)

  • Structure: Front and rear opposed spindles, double turrets, capable of simultaneous machining on both ends. Coaxiality ≤ 0.005 mm.
  • Motorcycle Applications: Crankshafts, shock absorber piston rods, long shift shafts.

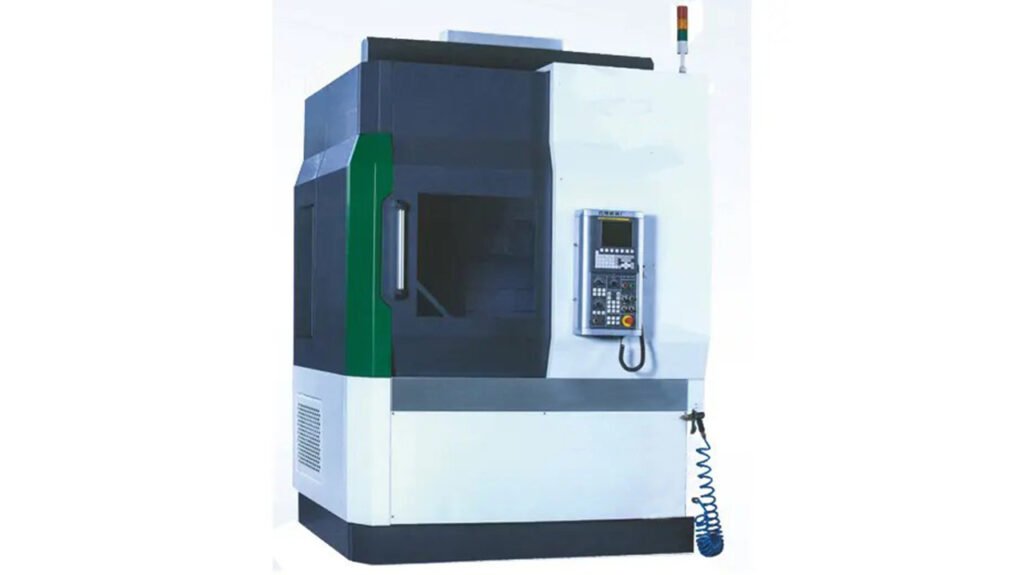

4. Vertical CNC Lathe (Specialized for Wheel Hubs & Brake Discs)

  • Structure: Vertical spindle, horizontal workpiece placement, high-rigidity base, suitable for large-diameter, short-axis disc parts.
  • Motorcycle Applications: Front and rear wheel hubs, brake discs, large flanges.
  • Features: Equipped with CNC system, high positioning accuracy, suitable for mass wheel hub production lines.

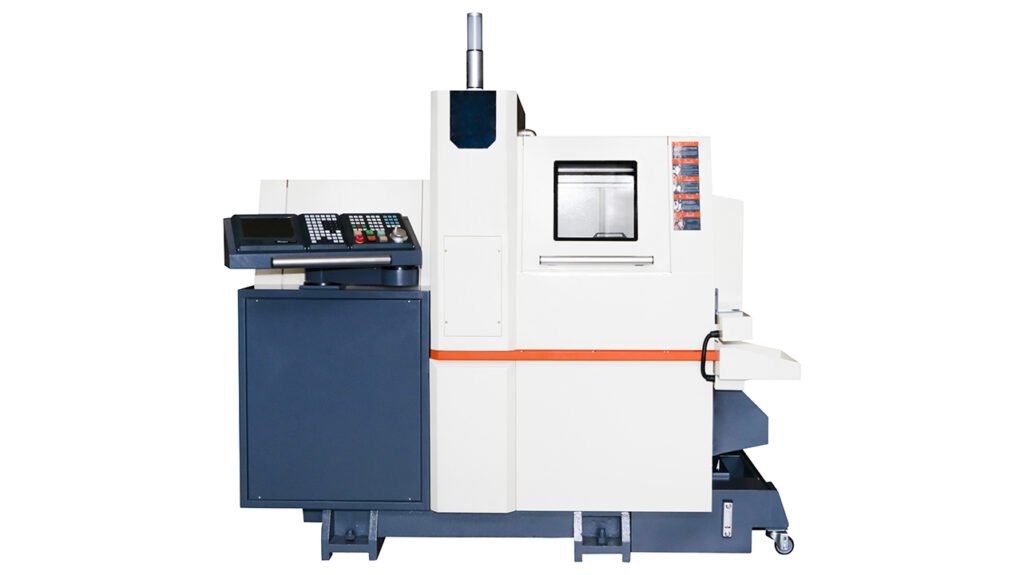

5. Swiss-Type CNC Lathe (Anti-Deformation for Slender Precision Parts)

  • Structure: Sliding headstock with guide bush, full support for slender rods (L/D > 10), tolerance ± 0.005 mm, surface roughness Ra ≤ 0.8 μm.
  • Motorcycle Applications: Valves, shock absorber piston rods, slender spline shafts, precision fasteners.

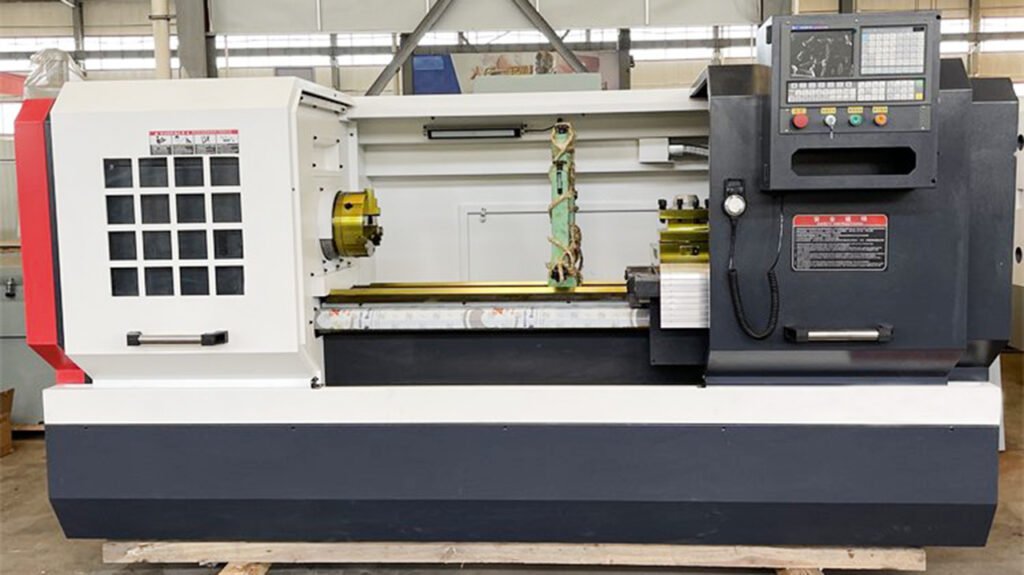

6. Economic Horizontal Flat Bed CNC Lathe (Rough Machining for Low-Cost Parts)

  • Configuration: Flat bed, 4-station turret, semi-closed-loop control.
  • Motorcycle Applications: Rough machining of non-critical parts such as ordinary bolts, nuts, gaskets, and low-end shaft sleeves.

Key Selection Points for CNC Lathes in Motorcycle Manufacturing

  1. Precision: For key parts (crankshafts/camshafts), positioning accuracy ≤ 0.005 mm, repeat positioning accuracy ≤ 0.002 mm, and coaxiality ≤ 0.005 mm.
  2. Material Adaptation: Choose high-speed spindles for aluminum alloy (wheel hubs), high-torque models for steel (crankshafts), and models with high-pressure cooling + special tools for titanium alloy/stainless steel (racing exhaust parts).
  3. Automation: For mass production lines, prioritize automatic bar feeders, truss robotic loading/unloading, online measurement and compensation, and MES integration.
