High Head Submersible Pump-SCM Series Cistern Pump -

SCM series

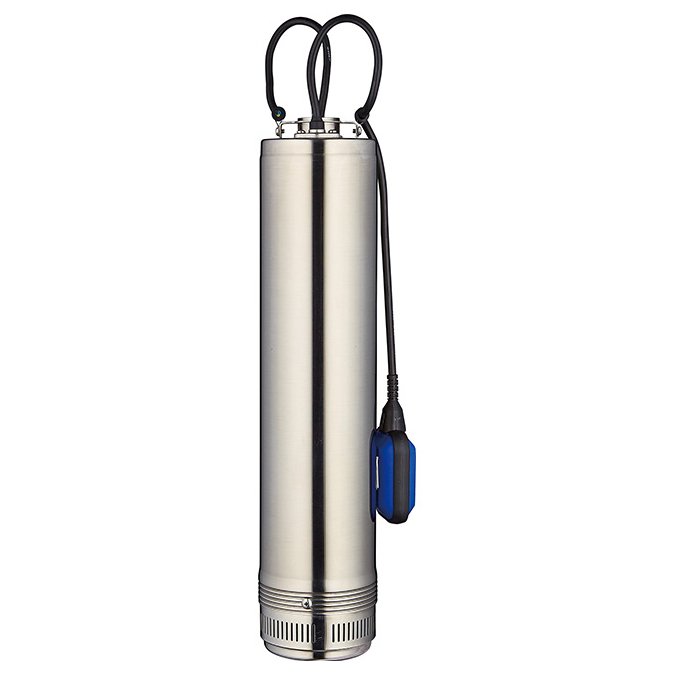

≋ SCM Multistage High Head Submersible Pump

∿ We provide a wide range of deep well submersible pumps from 2” to 10” which are designed for transferring water from wells, ponds, lakes and cisterns.

◍ SCM series are suitable for wells over φ125mm

✓ Reliable Structure for Continuous Water Delivery

★ Heavy-duty Casing • Efficient Motor • Built to Last

Product Description

SCM series pump is 5inch integrated submersible pump which is designed to pump water from bottom inlet. It is suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.They are easy to use, they are suitable for use in applications such as clearing dirty water,discharging domestic waster water,and for emptying collection traps containing particle up to a maximum of φ35mm.

Operation Coditions

Maximum liquid temperature +40 °C

Maximum solid particle:φ35mm

Maximum immersion depth of 5 m

Minimum well diameter: 130mm

Features

Rewindable motor

Single-phase:220-240V/50Hz

Three-phase:380-415V/50Hz

Equip with start control box or digital auto-control box

It’s available to equip with floating switch

Components	Material
Pump external casing	AISI 304 SS
Delivery casing	AISI 304 SS
Suction lantern	AISI 304 SS
Diffuser	Plastic.PPO
Impeller	Plastic.PPO
Motor external casing	AISI 304 SS
Top chock	Cast-iron ASTM NO.30 / AISI 420 SS
Bottom support	AISI 304 SS
Mechanical seal	Graphite-Ceramic
Shaft	AISI 304 SS-ASTM5140
Seal lubricant oil	Oil for food machinery and pharmaceutic use.
