Electric Jet Pump-JSW Jet Pump -

JSW series

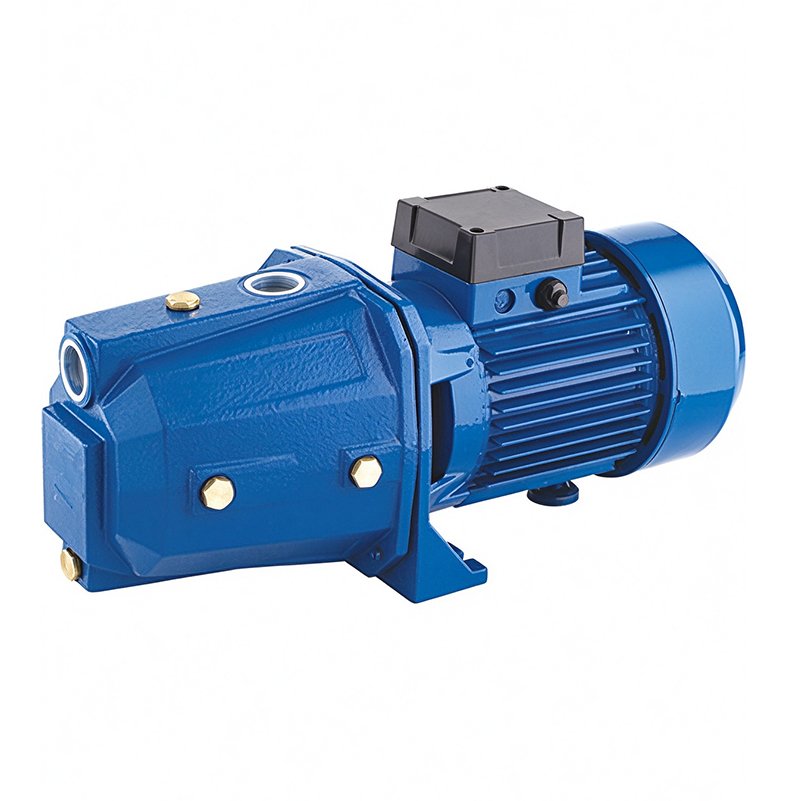

≋ JSW Electric Jet Pump

∿ We are a Chinese manufacturer and supplier offering high-quality, high-performance water pumps.

◍ JSW pump is designed for shallow wells up to 25′ deep or to boost municipal water pressure

✓ Reliable Structure for Continuous Water Delivery

★ Heavy-duty Casing • Efficient Motor • Built to Last

Product Description

The JSW series are injection type clean water pumps, which are composed of a centrifugal pump and a nozzle, with stainless steel pump body and spare part.They are suitable for pumping clean water and non-aggressive liquid. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and pressure boosting etc.

Operation Coditions

Maximum fluid temperature up to +40℃

Maximum sand content: 0.25%

Maximum suction lift: 9m

Features

Rewindable motor

Single-phase:220-240V/50Hz

Three-phase:380-415V/50Hz

Impeller material: plastic or brass

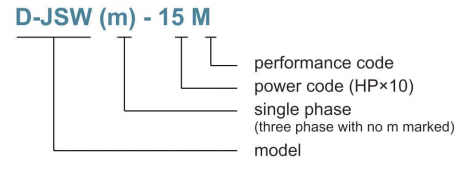

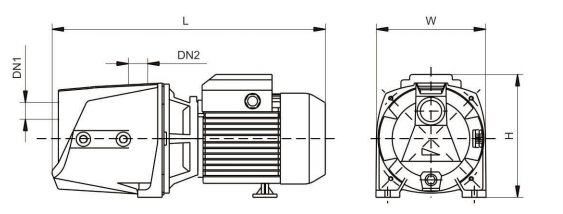

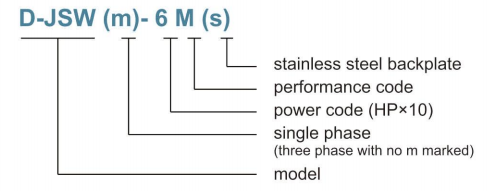

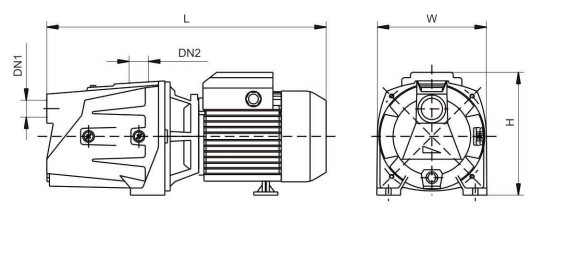

MODEL	DN1	DN2	DIMENSIONS(mm)			WEIGHTS(kg)
			W	H	L	1~	3~
D-JSW(m)-6M	1″	1″	150	172	340	12	11.5
D-JSW(m)-10M	1″	1″	180	208	417	16	15.5
D-JSW(m)-10H	1″	1″	180	208	417	16	15.5
D-JSW(m)-10L	1″	1″	180	208	417	16	15.5
D-JSW(m)-12M	1″	1″	180	208	417	17	16.5
D-JSW(m)-15M	1¼”	1″	208	236	506	24.5	23.5
D-JSW(m)-15H	1½”	1″	208	236	506	24.5	23.5
D-JSW(m)-15L	1½”	1″	208	236	506	24.5	23.5
D-JSW(m)-20M	2″	1″	208	236	506	26	25.5
D-JSW(m)-20H	2″	1″	208	236	506	26	25.5
D-JSW(m)-20L	2″	1″	208	236	506	26	25.5
