Submersible Pump for Clean Water-QXD Series Clean Water Submersible Pump -

QXD series

≋ QXD Submersible Pump For Clean Water

∿ We are a Chinese manufacturer and supplier offering high-quality, high-performance water pumps.

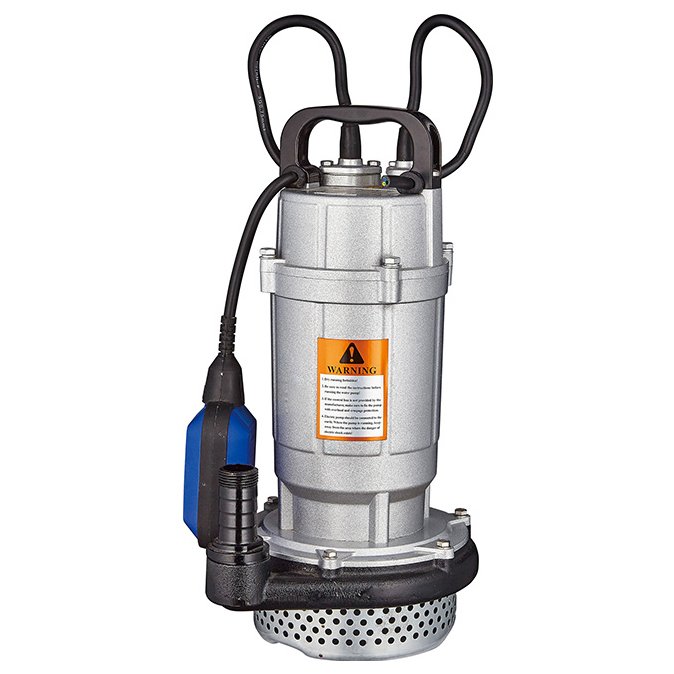

◍ QXD submersible pump is household high pressure electric pump for pumping clean liquid.

✓ Reliable Structure for Continuous Water Delivery

★ Heavy-duty Casing • Efficient Motor • Built to Last

Product Description

QXD series submersible clean water pump is small and light, which is widely used in countryside for elevating water from well, irrigation, sprinkling and domestic water supply, and also used in draining off water for fishpond and building site.

Operation Coditions

Maximum fluid temperature up to +40℃

Maximum sand content:0.1%

Features

Rewindable motor

Single-phase:220-240V/50Hz

Three-phase:380-415V/50Hz

It’s available to equip with floating switch

Components	Material
Diffuser	Cast-iron ASTM NO.30
Impeller	Cast-aluminum
Motor external casing	Cast-aluminum
Top chock	Cast-aluminum
Mechanical seal	Graphite-Ceramic
Shaft	AISI 304 SS, ASTM5140
Seal lubricant oil	Oil for food machinery and pharmaceutic use.
