The Air Conditioner Production line is an automated and digital manufacturing system that produces qualified AC units through sheet metal processing, heat exchanger manufacturing, compressor and control board production, indoor and outdoor unit assembly, performance testing, and packaging.

It integrates robotic welding, automatic refrigerant charging, vacuum testing, and online inspection. Key processes include assembly, leak detection, performance testing and aging, ensuring high efficiency and stable quality.

Air Conditioner Assembly Lines/Production Lines are Suitable to Assemble/Produce Air Conditioners.(Welcome to contact us, we will suggest and design the suitable Assembly Lines/Production Lines for your Air conditioners.)

Detailed Introduction to Air Conditioner Production Line

An air conditioner production line is a highly integrated, automated and digital manufacturing system. Its core function is to efficiently and stably produce qualified air conditioners from raw materials such as sheet metal, plastics, electronics and refrigeration components through processes including parts processing, indoor & outdoor unit assembly, performance testing, packaging and warehousing.

I. Overall Production Line Architecture (Six Core Modules)

Air conditioner production adopts a modular layout of “specialized parts production + general assembly integration + intelligent inspection”, divided into six independent yet coordinated production lines:

1. Sheet Metal Processing Line (Housings & Structural Parts)

Core processes: CNC stamping, bending, laser cutting, robotic welding, electrostatic spraying
Output: Chassis, side panels, front panels, top covers for indoor/outdoor units
Key equipment: CNC punching machines, bending machines, welding robots, spraying lines, drying ovens
Quality control points: Dimensional accuracy (±0.5mm), welding strength, coating adhesion, rust resistance

2. Heat Exchanger Production Line (Evaporator & Condenser)

Core processes: Copper pipe cutting/bending/expansion, fin stamping, fin inserting, welding, helium leak testing
Output: Indoor unit evaporator, outdoor unit condenser (core heat exchange components)
Key equipment: Pipe benders, pipe expanders, fin presses, automatic fin inserters, brazing furnaces, helium mass spectrometers
Quality control points: Pipeline leak tightness, qualified heat exchange area, uniform fin spacing, no virtual welding

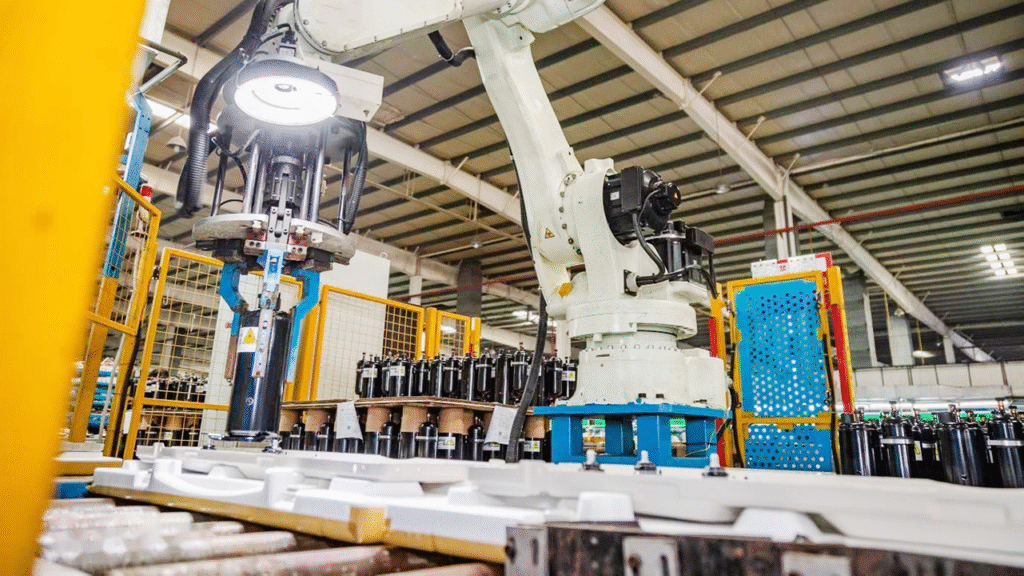

3. Compressor Assembly Line (Core Power)

Core processes: Automatic feeding, stator/rotor assembly, sealing, oil injection, performance testing
Output: Fixed-frequency / inverter compressors (core of refrigeration cycle)
Key equipment: Automatic assembly machines, torque wrenches, vacuum oil fillers, performance test benches
Quality control points: Assembly precision, sealing performance, noise, vibration, starting/running current

4. Electric Control Board Production Line (“Brain” of AC)

Core processes: SMT mounting, reflow soldering, through-hole insertion, wave soldering, ICT/FCT testing
Output: Main control boards, display boards, inverter drive boards for indoor/outdoor units
Key equipment: Chip mounters, reflow ovens, insertion machines, wave soldering machines, in-circuit testers
Quality control points: Soldering quality, electrical performance, functional logic, EMC compatibility

5. General Assembly Line (Separate for Indoor & Outdoor Units)

Indoor unit assembly: Chassis loading → Evaporator/electric control/fan assembly → Air duct/panel assembly → Wiring → Preliminary inspection
Outdoor unit assembly: Chassis loading → Compressor/condenser assembly → Pipeline welding → Vacuum pumping → Refrigerant charging → Electrical assembly → Casing installation
Key equipment: Double-speed chain / roller conveyors, robotic arms, automatic screw fastening machines, vacuum units, refrigerant filling machines
Quality control points: Assembly sequence, pipeline connection, electrical wiring, precise refrigerant dosage control

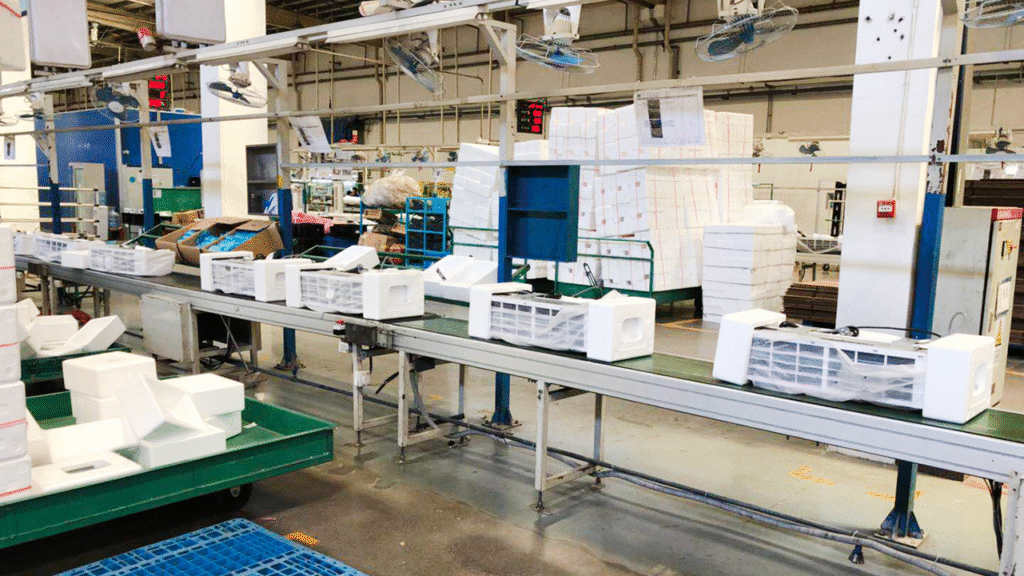

6. Testing & Packaging Line

Core tests: Cooling/heating performance, electrical safety, noise, vibration, aging, IP protection

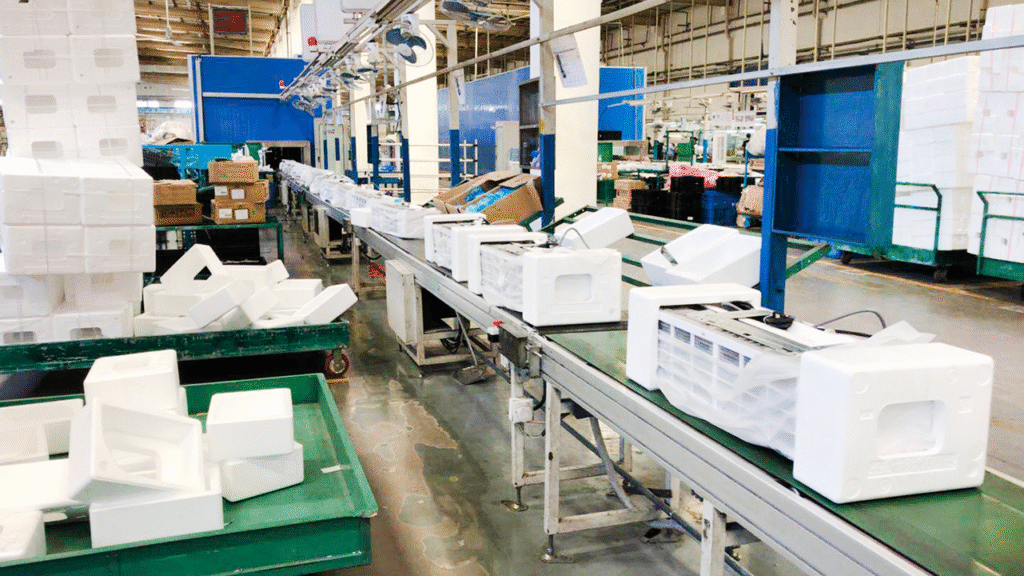

Packaging process: Automatic bagging → Boxing → Sealing → Labeling → Palletizing → Warehousing
Key equipment: Comprehensive performance test chambers, anechoic rooms, aging lines, automatic packaging machines, AGVs / automated warehouses
Quality control points: Performance compliance, safety certification, intact packaging, accurate labeling

II. Standard Production Process (Full Link)

1. Pre-Production Preparation

Raw material warehousing and IQC inspection (steel plates, copper pipes, plastics, electronic components, compressors, etc.)
Production scheduling (work orders issued by MES system, matching materials and production lines)
Tooling, fixtures, molds and program preparation

2. Core Component Processing (Parallel Production)

Sheet metal parts: Stamping → Bending → Welding → Spraying → Drying → Inspection
Heat exchangers: Copper pipe processing → Fin stamping → Fin inserting → Pipe expansion → Welding → Helium leak test
Electric control boards: SMT → Reflow soldering → Insertion → Wave soldering → Testing
Plastic parts: Injection molding → Deburring → Inspection

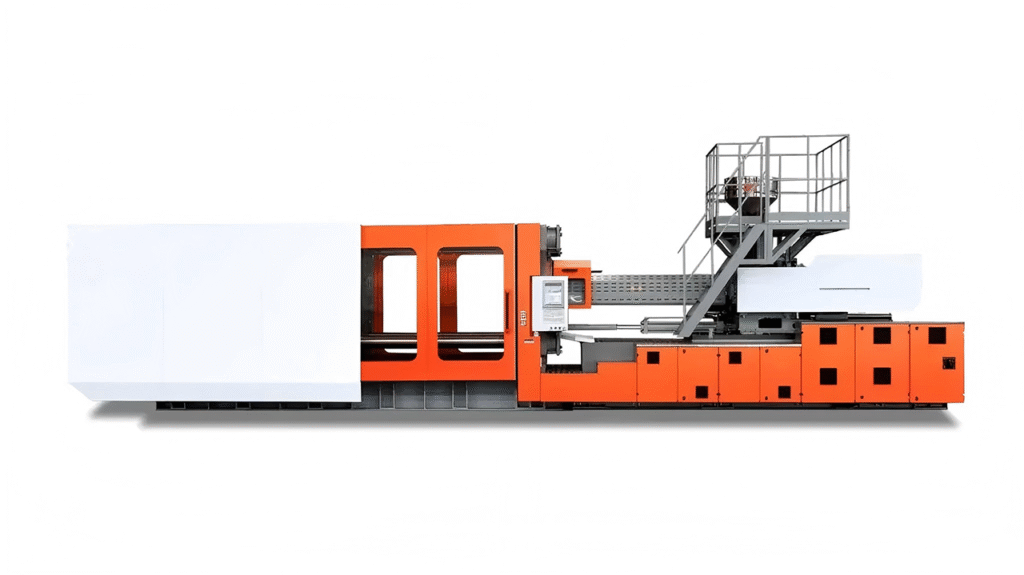

Injection Molding Machine for Air Conditioner Housings

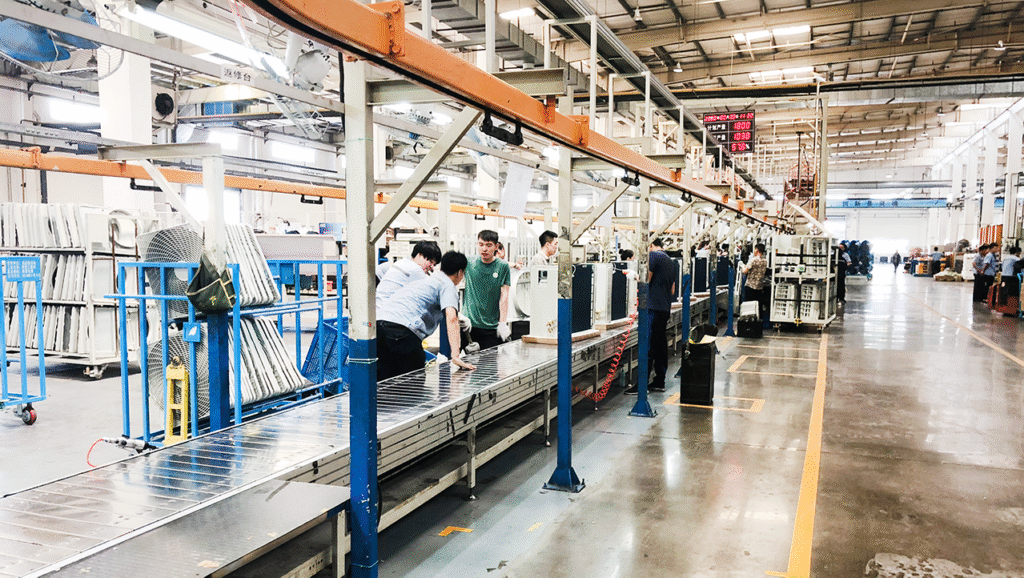

3. Indoor Unit General Assembly (Typical Processes)

Chassis loading and positioning
Evaporator assembly installation
Electric control box and wiring installation
Cross-flow fan / motor assembly
Air duct and front panel assembly
Electrical connection and continuity test
Preliminary function inspection

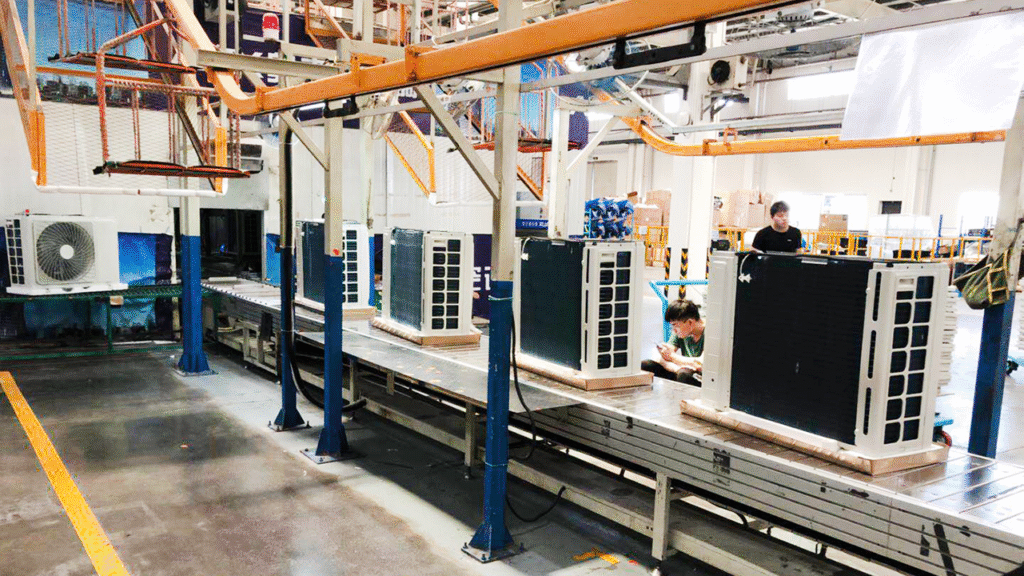

4. Outdoor Unit General Assembly (Typical Processes)

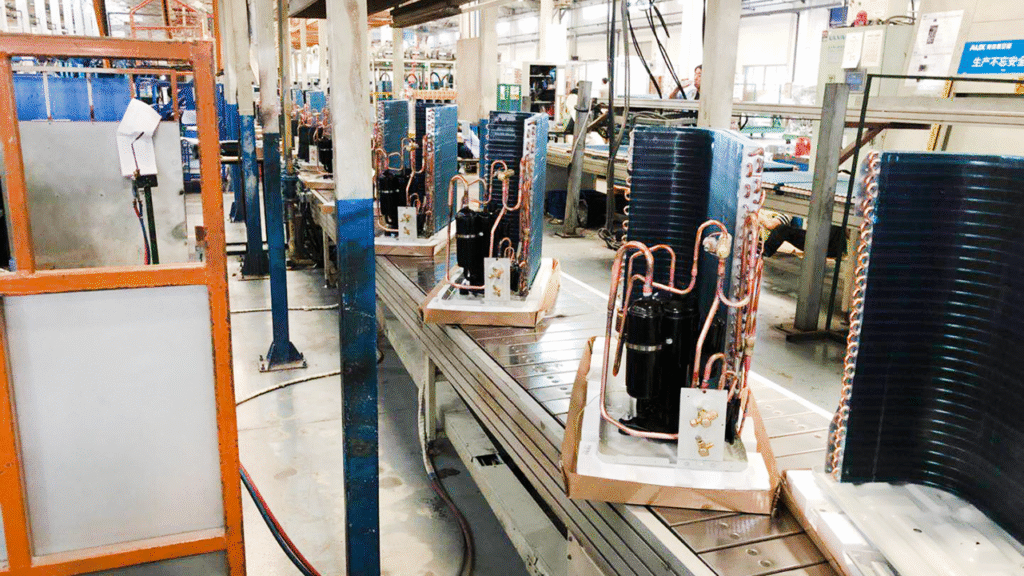

Chassis loading → Install compressor damping pads → Fix compressor
Condenser bending and assembly
Four-way valve, capillary tube, shut-off valve and other pipeline assembly
Nitrogen purging → Pipeline brazing → Cooling (anti-oxidation, sealing assurance)
Vacuum pumping (≤50Pa, pressure holding leak test)
Precise charging of refrigerant (R32/R410A)
Electric control and wiring installation
Fan, motor and casing assembly

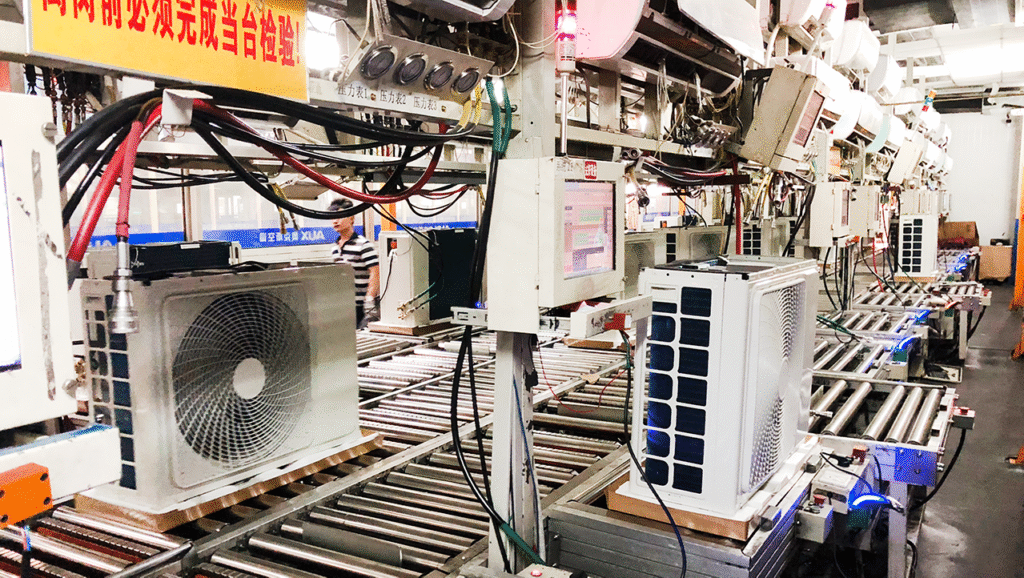

5. Comprehensive Performance Testing (Mandatory Checkpoint)

Electrical safety: Withstanding voltage, insulation, grounding, leakage current test
Cooling/heating: Capacity, energy efficiency, current, pressure tested in enthalpy difference laboratories
Noise & vibration: Noise level measurement in semi-anechoic chambers, vibration testing
Aging test: Continuous operation for 4–8 hours, simulating extreme working conditions
Appearance & labeling: Full inspection of appearance, nameplates, barcodes

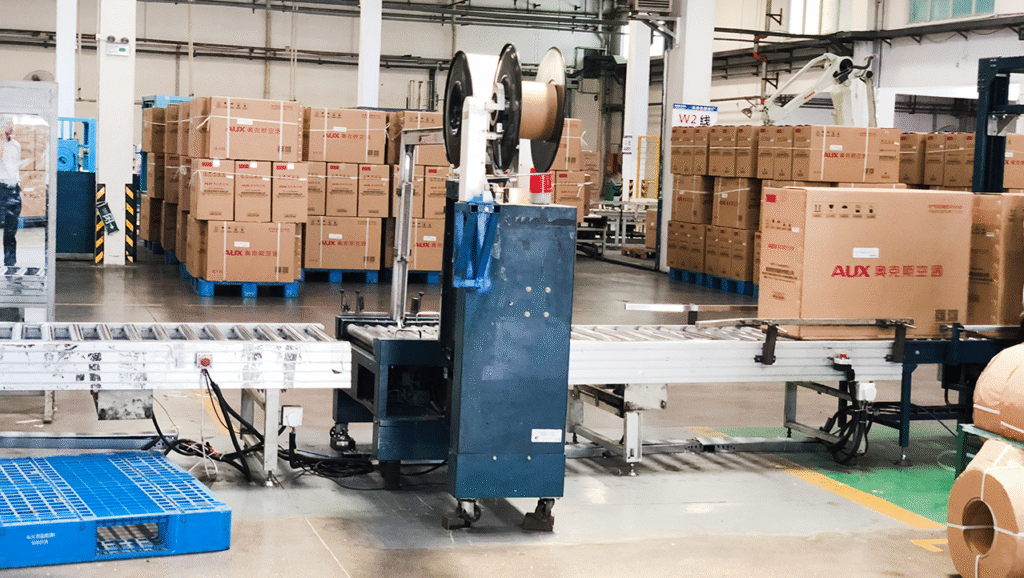

6. Packaging & Warehousing

Qualified products automatically bagged, boxed, sealed and labeled
Robotic palletizing, automatic transportation to automated warehouses
WMS system warehousing for delivery

III. Comparison Between Indoor & Outdoor Unit Production Lines

Item	Indoor Unit Production Line	Outdoor Unit Production Line
Core components	Evaporator, fan, electric control, air duct	Compressor, condenser, four-way valve, pipelines
Key processes	Assembly, wiring, air duct sealing	Welding, vacuum pumping, refrigerant charging, high-pressure leak test
Testing focus	Air volume, noise, electric control function	Cooling capacity, pressure, leakage, vibration
Automation challenges	Flexible assembly, appearance inspection	Precision welding, vacuum and refrigerant control
