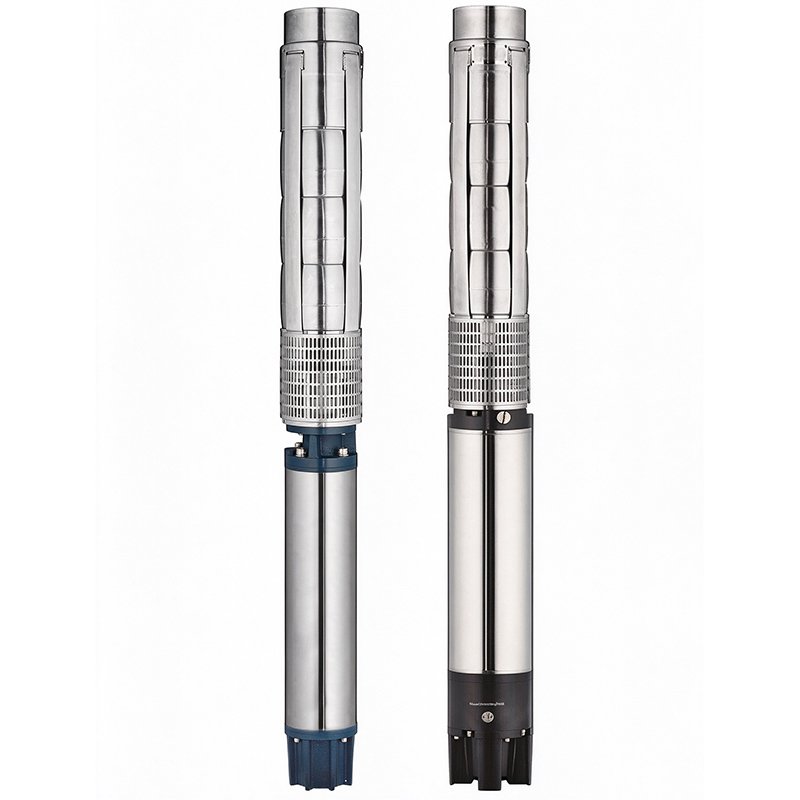

8” Borehole Pump–8SP77 Series Deep Well Submersible Pump -

8SP77 series

≋ 8SP Submersible Deep Well Pump

∿ We provide a wide range of deep well submersible pumps from 2” to 10” which are designed for transferring water from wells, ponds, lakes and cisterns.

◍ 8SP stainess steel series are suitable for wells over φ200mm

✓ Reliable Structure for Continuous Water Delivery

★ Stainless Steel Shaft • Efficient Motor • Built to Last

Product Description

8SP deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for pressure boosters, firefighting systems, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.

Operation Coditions

Maximum fluid temperature up to +50℃

Maximum sand content:0.25%

Minimum well diameter:8″

Features

Rewindable motor

Three-phase:380-415V/50Hz

①Direct start (1 cable)

②Star-delta start (2 cables)

Equip with start control box or digital auto-control box

Components	Material
Delivery casing	①AISI 304 SS ②AISI316 SS
Suction lantern	①AISI304 SS ②AISI 316 SS
Diffuser	①AISI 304 SS ②AISI316 SS
Impeller	①AISI 304 SS ②AISI 316 SS
Shaft	①AISI 431 SS ②AISI 316 SS
Shaft coupling	①AISI304 SS ②AISI 316 SS
Wear ring	Rubber
Motor external casing	AISI304 SS
Top chock	Cast-iron ASTM NO.30
Bottom support	Cast-iron ASTM NO.30
Seal	NBR Graphite-SIC/TC
Shaft	AISI 304 SS-ASTM5140
