2” Borehole Pump–2SD Series Deep Well Submersible Pump -

2SD series

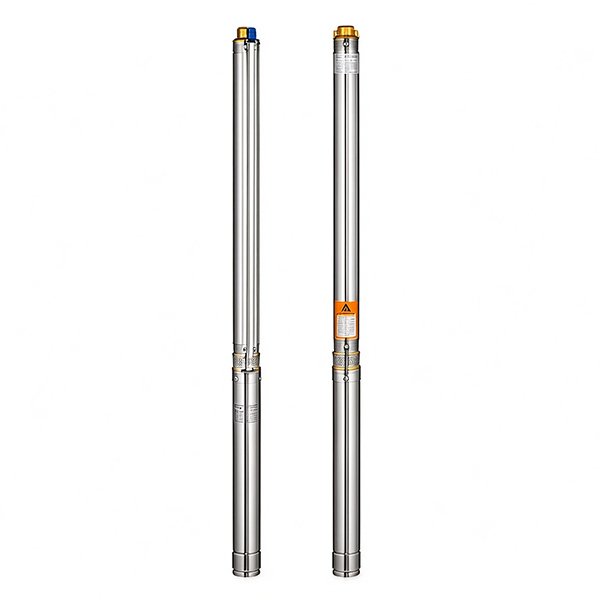

≋ 2SD Submersible Deep Well Pump

∿ We provide a wide range of deep well submersible pumps from 2” to 10” which are designed for transferring water from wells, ponds, lakes and cisterns.

◍ 2SD series are suitable for wells over φ50mm

✓ Reliable Structure for Continuous Water Delivery

★ Stainless Steel Shaft • Efficient Motor • Built to Last

Product Description

2SDM deep well submersible pump is used to pump water from drilled deep wells, borehole wells, ponds, and lakes. Ideal for sprinkler lawn irrigation, household tap water, swimming pool filling, elevated and cistern tanks filling, water fountains, industrial and farming water supply, and agricultural irrigation.

Operation Coditions

Maximum liquid temperature +35 °C

Maximum sand content:0.25%

Maximum immersion depth of 60 m

Minimum well diameter:50mm

Installation: vertical

Features

Rewindable oil-filled motor 50/60Hz

Food degree mechanical oil

Voltage:

single-phase 110V/60Hz, 220V-240V/50Hz, 220V/60Hz

three-phase 380V-400 V

Insulation: class F

Protection: IP 68

Components	Material
Pump external casing	AISI304 SS
Delivery casing	Cast-Cu ASTM C85500
Suction lantern	Cast-Cu ASTM C85500
Diffuser	Plastic. PC
Impeller	Plastic. POM
Shaft	AISI304 SS
Shaft coupling	AISI304 SS
Wear ring	AISI304 SS
Motor external casing	AISI304 SS
Top chock	Cast-iron
	Cast-Cu
Bottom support	AISI304SS
Mechanical seal	Special seal for deep well (Graphite-Ceramic/TC)
Shaft	AISI304
Seal lubricant oil	Oil for food machinery and pharmaceutic use
